Power Latch Assembly Inspection with GDS
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS).
- Self diagnosis: Checking failure and code number (DTC)
- Current data: Checking the system input/output data state
- Actuation test: Checking the system operation condition
- Additional function: Controlling other features including system option setting and zero point adjustment
- Select the "Car model" and the system to be checked in order to check the vehicle with the tester.
- Select the "Power Trunk Module (PTM)" to check the Power trunk module (PTM).
- Select the "Current date" menu to search the current state of the input/output data.

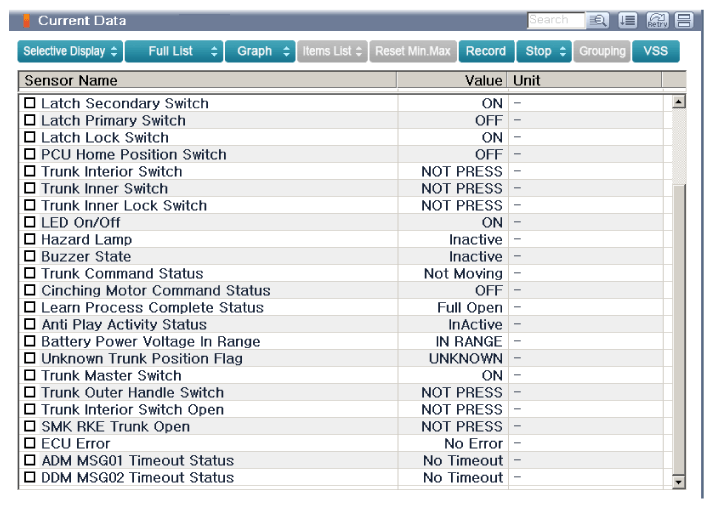

The input/output data for the sensors corresponding to the Power Trunk Module (PTM) can be checked.
