Signal Waveform & Data

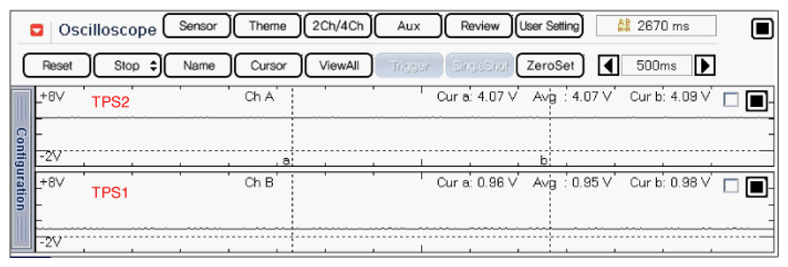

G12653769Courtesy of HYUNDAI MOTOR AMERICA

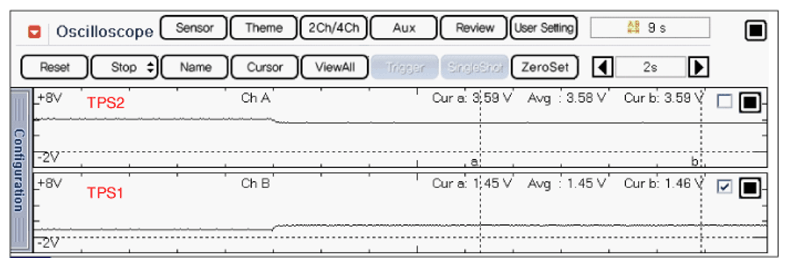

G12653770Courtesy of HYUNDAI MOTOR AMERICA

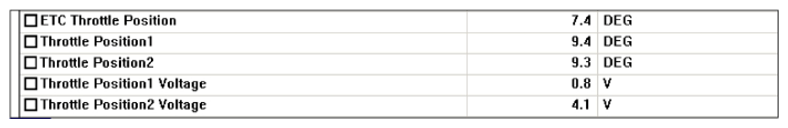

G12653771Courtesy of HYUNDAI MOTOR AMERICA

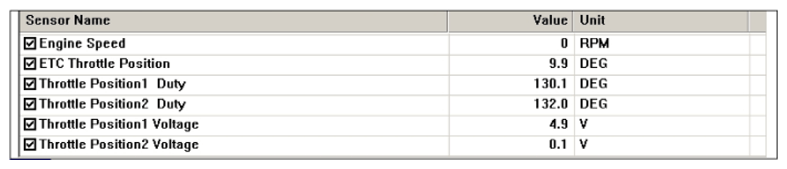

G12653772Courtesy of HYUNDAI MOTOR AMERICA

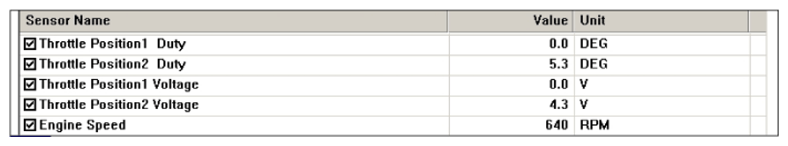

G12653773Courtesy of HYUNDAI MOTOR AMERICA
