Signal Waveform & Data

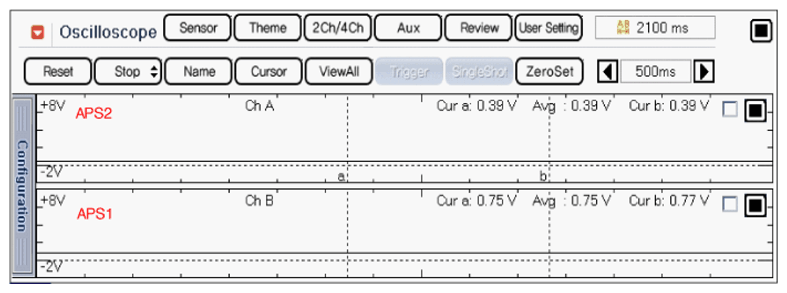

G12651810Courtesy of HYUNDAI MOTOR AMERICA

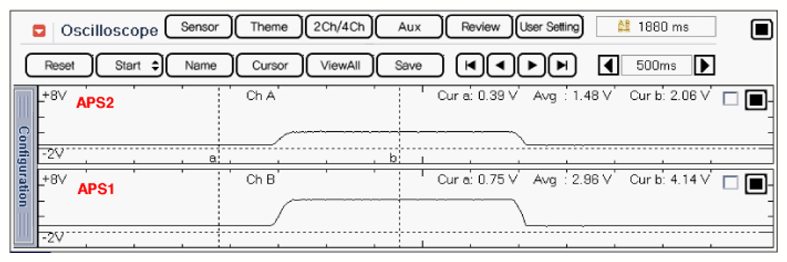

G12651811Courtesy of HYUNDAI MOTOR AMERICA

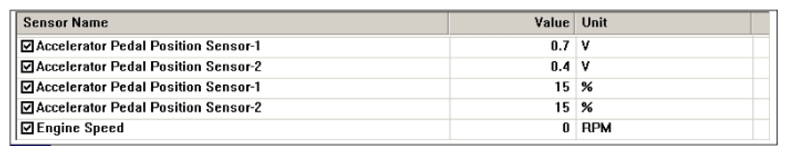

G12651812Courtesy of HYUNDAI MOTOR AMERICA

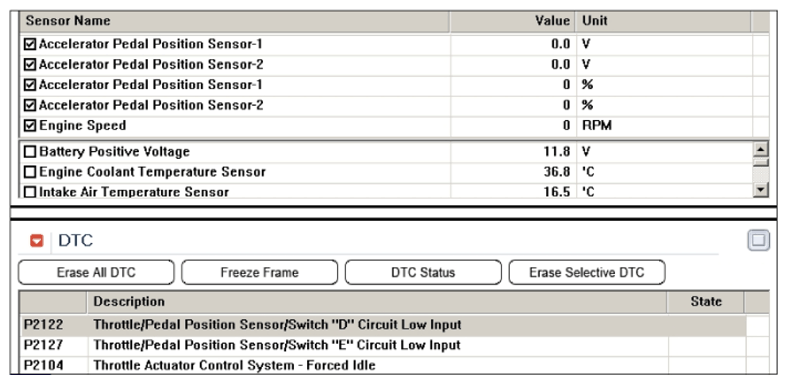

G12651813Courtesy of HYUNDAI MOTOR AMERICA

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
