Signal Waveform & Data

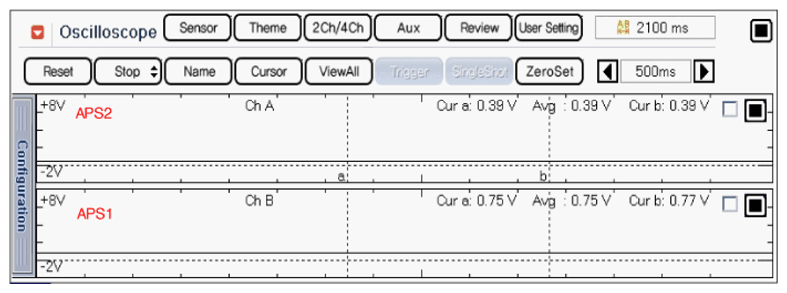

G12651817Courtesy of HYUNDAI MOTOR AMERICA

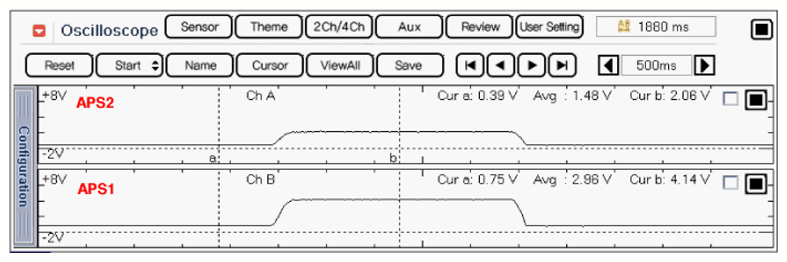

G12651818Courtesy of HYUNDAI MOTOR AMERICA

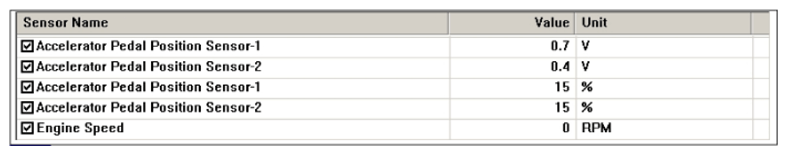

G12651819Courtesy of HYUNDAI MOTOR AMERICA

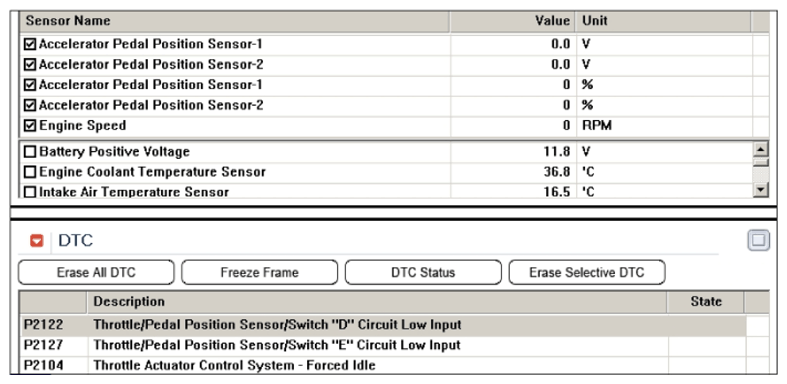

G12651820Courtesy of HYUNDAI MOTOR AMERICA

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
