Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Input oil-pressure characteristics received backup in new TCM.

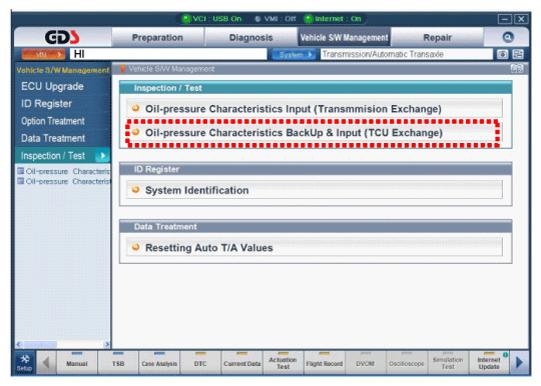

    G12660641Courtesy of HYUNDAI MOTOR AMERICA

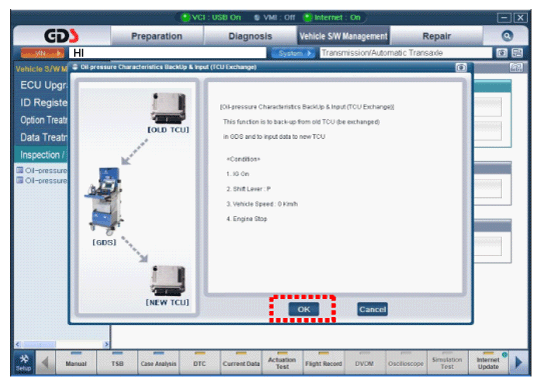

    G12660642Courtesy of HYUNDAI MOTOR AMERICA

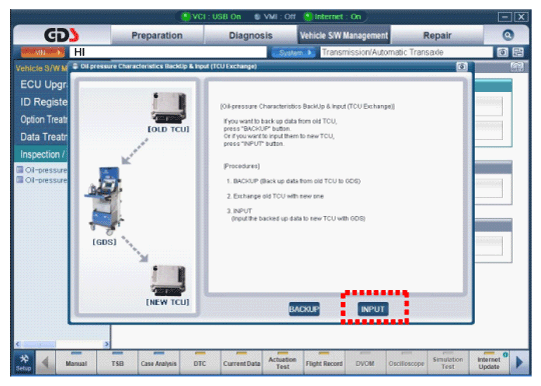

    G12660643Courtesy of HYUNDAI MOTOR AMERICA

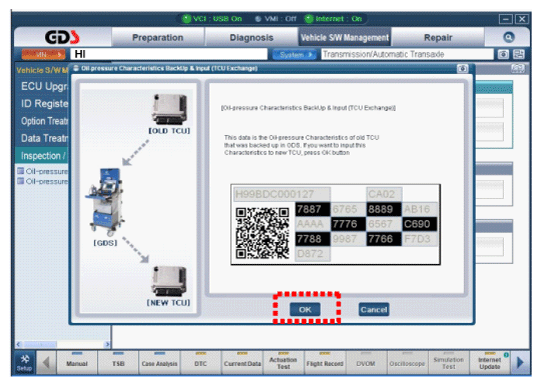

    G12660644Courtesy of HYUNDAI MOTOR AMERICA

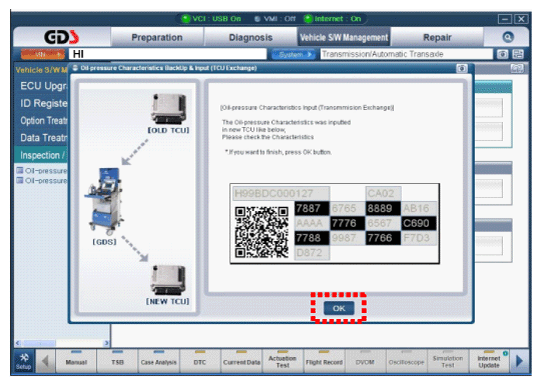

    G12660645Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM Adaptive Values Learning Procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
