Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

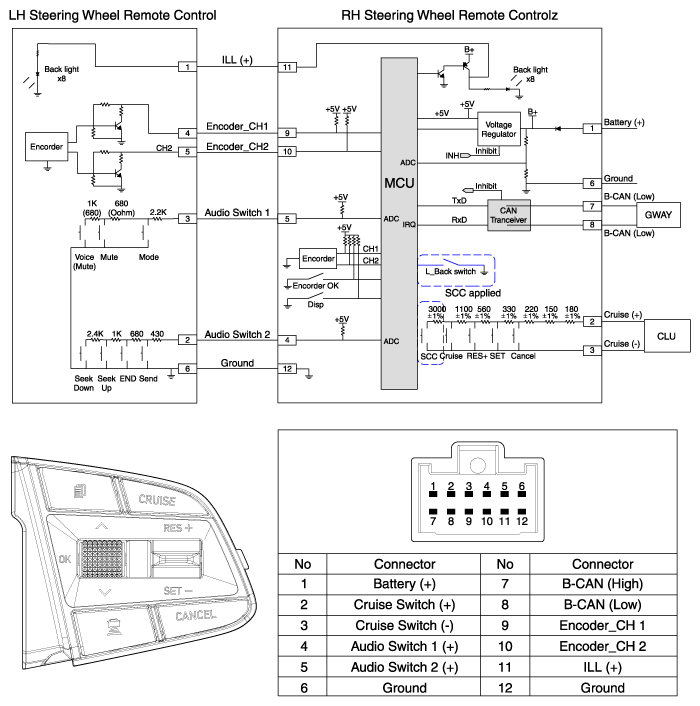

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
