Components (1)

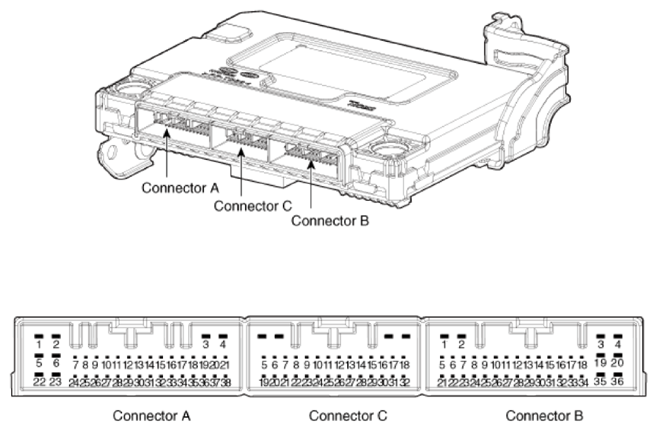

CONNECTOR PIN DESCRIPTION
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | B_CAN (Low) | Front wiper low bus_input |
| 2 | Power mirror_input | B_CAN (High) | power_GND |
| 3 | P-CAN (Low) | FPAS power_output | B+(power) |
| 4 | P-CAN (High) | RPAS power_output | B+ (ECU) |
| 5 | - | ECU GND | Driver's door outside handle switch (input) |
| 6 | Right mirror unfonding_output | PAS/RPAS_input | "P"_input (AT)/IGN lock switch_input (MT) |
| 7 | Right mirror HR_output | PAS option_input | Interior 1 Antenna (-)_output |
| 8 | Immobilizer antenna (+)_output | - | Bumper antenna (-)_output |
| 9 | Immobilizer antenna (-)_output | - | Interior 1 Antenna 2 (-)_output |
| 10 | Brake switch signal input | - | Passenger's door outside handle antenna (-)_input |
| 11 | ESCL Enable_output | Front wiper relay_output | Trunk antenna 3 (-)_output |
| 12 | Brake switch signal input | - | Driver's door outside handle antenna (-)_output |
| 13 | Fog switch_input | - | - |
| 14 | Light switch_input | - | ESCL_COM |
| 15 | Front wiper volume switch _input | LF sharing_output | Auto light sensor power_output |
| 16 | PAS/RPAS_output | - | ACC_input |
| 17 | Start Stop Button (SSB) Ring illumination (+)_output | SSB switch1_input | IGN 1 relay_output |
| 18 | PAS (LIN1) | PAS/RPAS power_input | ACC relay_output |
| 19 | SAFETY (LIN1) | Security indicator_output | ESCL (-)_output |
| 20 | RPM_input | Sunroof status_input | ESCL (+)_output |
| 21 | Wheel speed sensor signal_input | Rain sensor option_input | Passenger's door outside handle switch _input |
| 22 | - | Wiper parking switch_input | - |
| 23 | Right mirror folding_output | Wiper power relay_output | Interior 1 Antenna (+)_output |
| 24 | Right mirror VT_input | Wiper Low relay_output | Bumper antenna (+)_output |
| 25 | - | - | Interior 1 Antenna (+)_output |
| 26 | Puddle poket lamp_output | - | Passenger's door outside handle antenna (+)_output |
| 27 | Engine start feedback_input | - | Trunk antenna 3 (+)_output |
| 28 | - | - | Driver's door outside handle antenna (+)_output |
| 29 | Starter relay output | - | EMS_COM |
| 30 | Head lamp switch (High)_input | - | Auto light sensor ground_output |
| 31 | Front wiper switch_input | SSB switch2_input | Auto light sensor signal_input |
| 32 | - | ESCL Unlock switch_input | IGN 1_input |
| 33 | Multifunction switch ground_input | IGN 2_input | |
| 34 | External buzzer_output | IGN 2 relay_input | |
| 35 | Start Stop Button (SSB) illumination (+)_output | Front washer switch_input | |
| 36 | Rain sensor (LIN2) | B+ (ESCL) | |
| 37 | - | ||
