Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. After installation, bleed the brake system.

    (Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")

  3. Connect the GDS to the data link connector located underneath the dash panel.
  4. Using the GDS, Perform FCA (Smart cuise control system) variant coding.

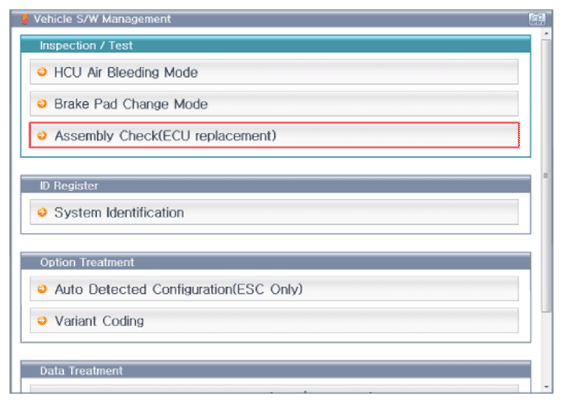

  5. After replacing the ESP control module execute the "Assembly Check (ECU replacement)" of the additional function to check that the mounting is successful.
G13541029Courtesy of HYUNDAI MOTOR AMERICA
