Components & Components Location: Components

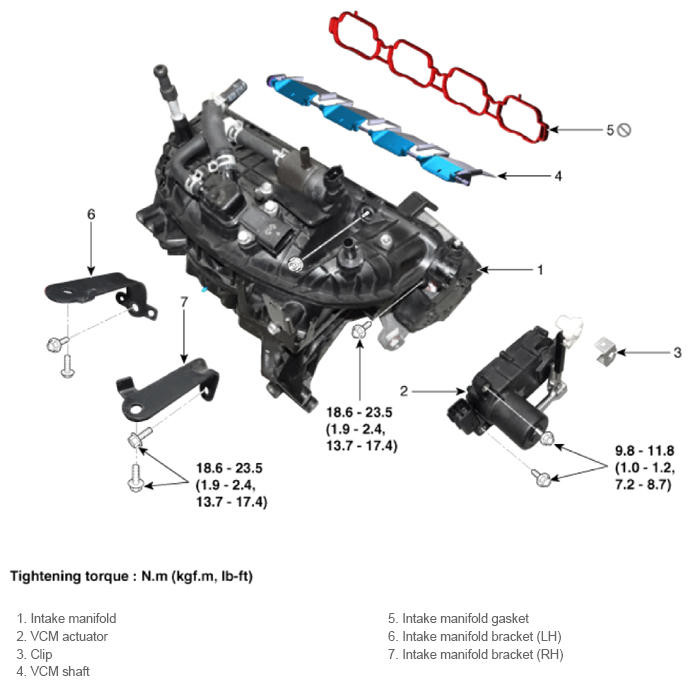

Fig 1: Intake Manifold Components Location With Torque Specification
G13539022Courtesy of HYUNDAI MOTOR AMERICA
