Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

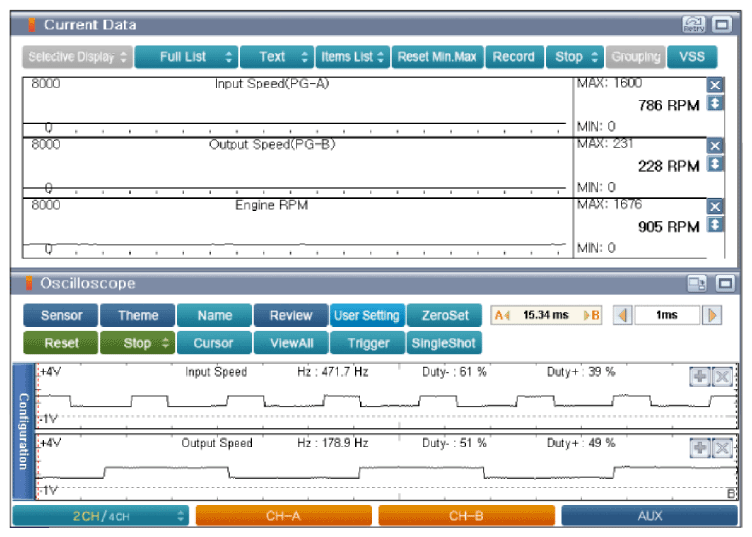

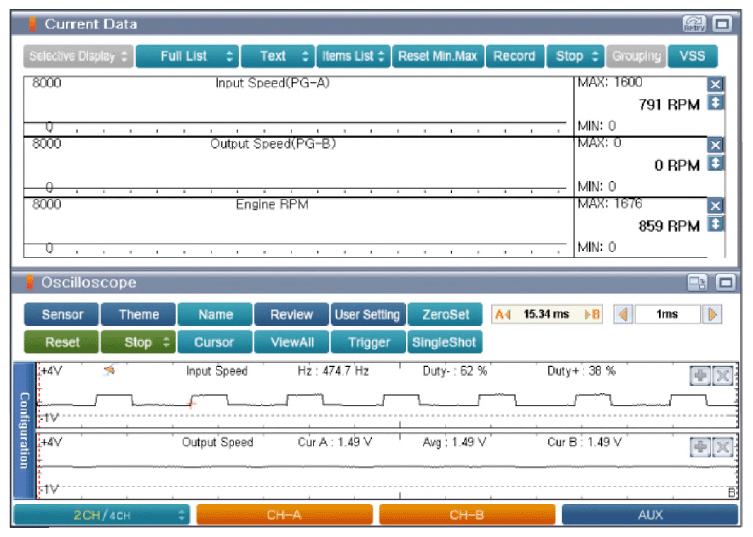

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%
