Home >> Genesis >> 2019 >> G70 2.0T Advanced, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 2.0L >> Valve Body >> Components & Components Location >> Components

April 5, 2026: LEMON Manuals is launched! Read the announcement.

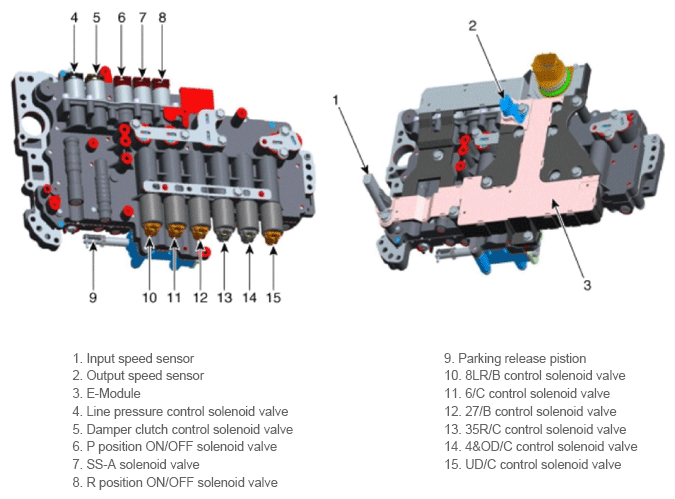

Components & Components Location: Components

G13539818

Courtesy of HYUNDAI MOTOR AMERICA
