Components & Components Location: Components

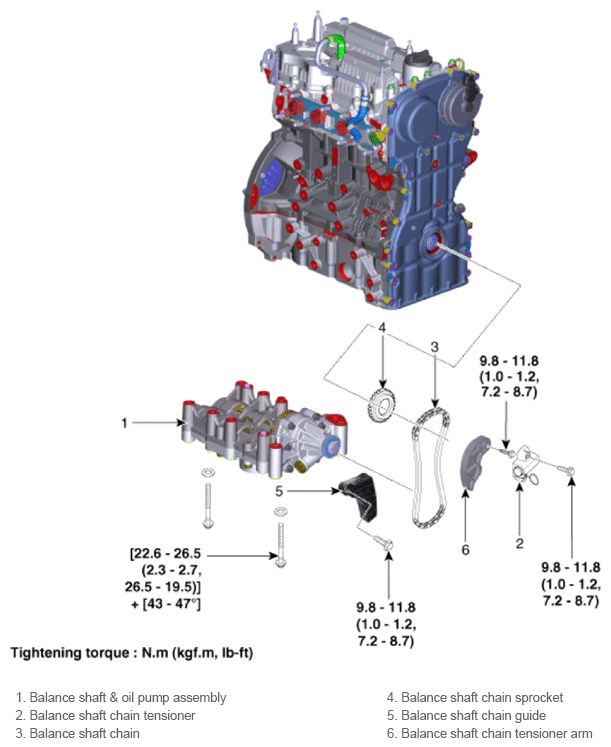

Fig 1: Balance Shaft Module Components Location With Torque Specification
G13538962Courtesy of HYUNDAI MOTOR AMERICA
