Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

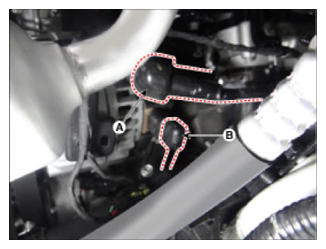

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G13539525Courtesy of HYUNDAI MOTOR AMERICA

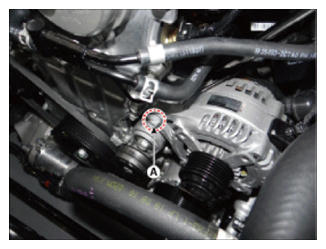

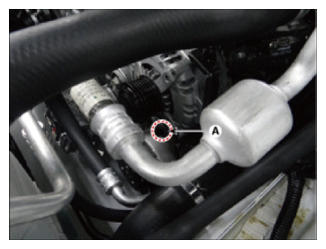

  4. Remove the alternator lower bolt and upper bolt (A).
    G13539526Courtesy of HYUNDAI MOTOR AMERICA
    G13539527Courtesy of HYUNDAI MOTOR AMERICA

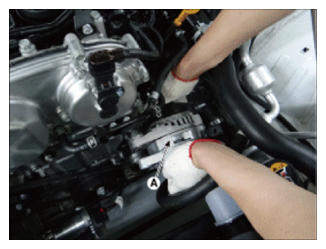

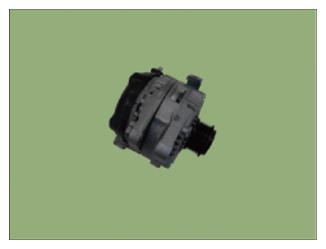

  5. Remove the alternator (A).
    G13539528Courtesy of HYUNDAI MOTOR AMERICA
    G13539529Courtesy of HYUNDAI MOTOR AMERICA
