Repair Procedures: Removal

  1. Turn the ignition switch OFF.

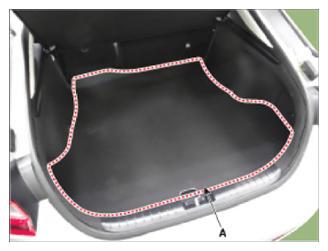

  2. Remove the luggage covering (A).
    G13539490Courtesy of HYUNDAI MOTOR AMERICA

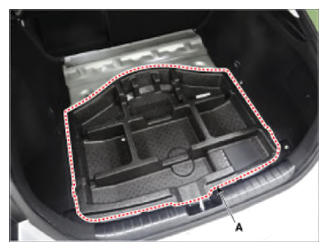

  3. Remove the luggage center tray (A).
    G13539491Courtesy of HYUNDAI MOTOR AMERICA

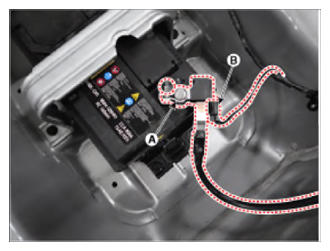

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G13539492Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G13539493Courtesy of HYUNDAI MOTOR AMERICA
