Components Location

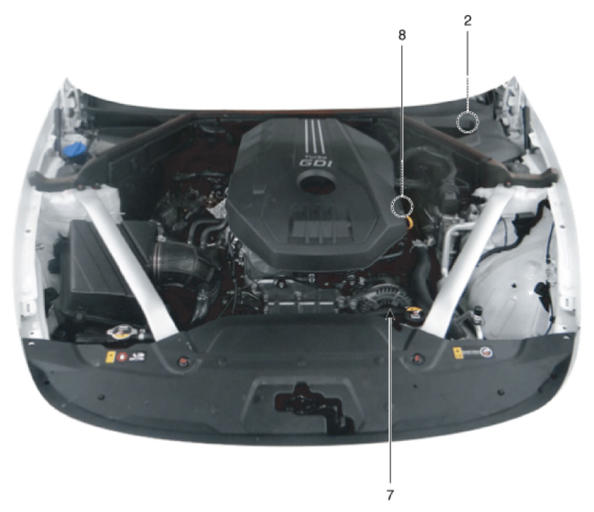

G13539485Courtesy of HYUNDAI MOTOR AMERICA

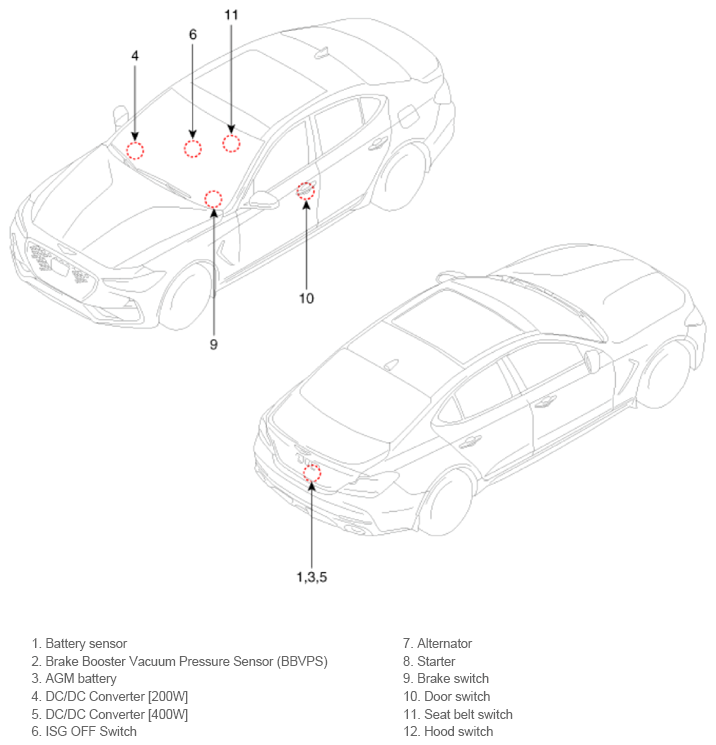

G13539486Courtesy of HYUNDAI MOTOR AMERICA
G13539487Courtesy of HYUNDAI MOTOR AMERICA

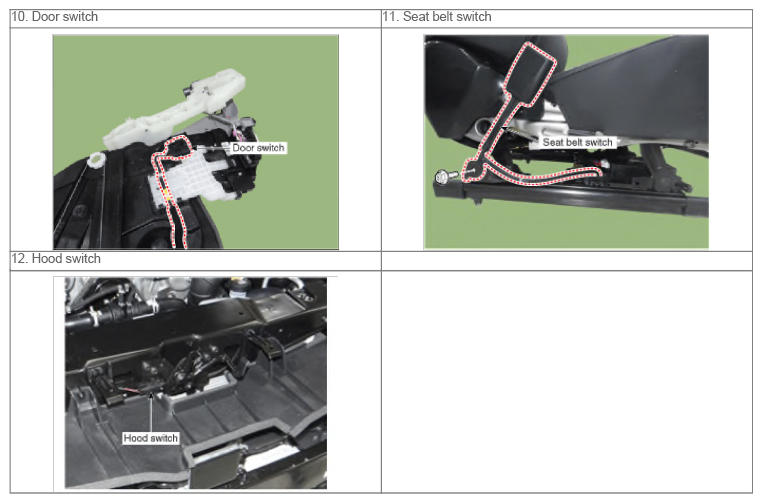

G13539488Courtesy of HYUNDAI MOTOR AMERICA
