Check Timing

Ignition switch is turned "OFF".

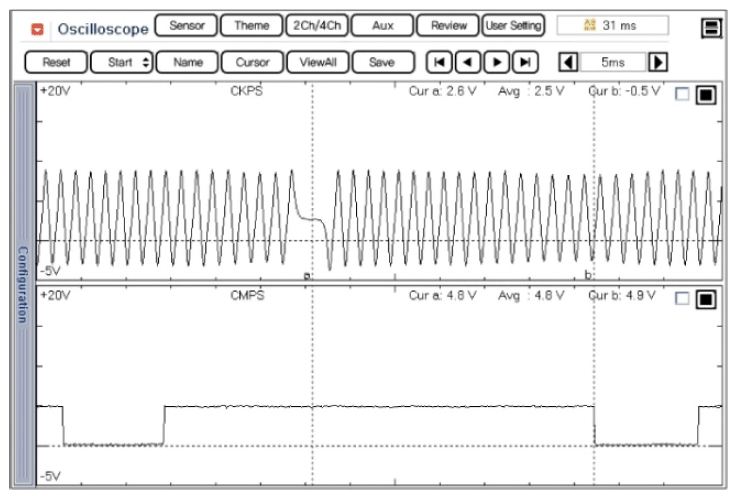

Monitor these signal waveforms from CAM and Crankshaft position Sensor are correctly aligned.
Reference: The 17th CKP signal after the missing tooth is aligned with the high voltage CMP signal.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Are all timing marks aligned correctly?
YES
- Go to procedure "Check Fuel Pressure" below.
NO

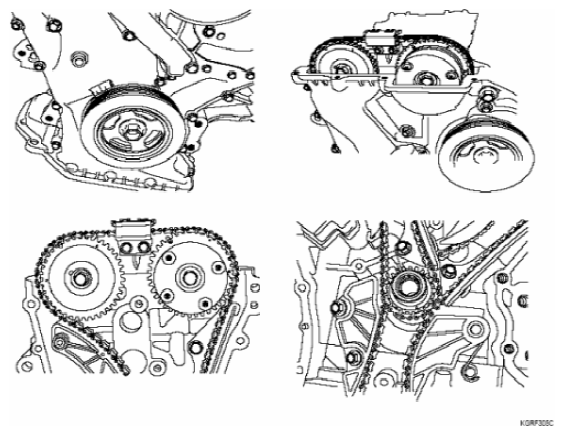

- Check that Cam, Crank and Oil pump sprocket timing marks are correctly aligned. Repair or readjust as necessary. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
