Repair Procedures: Installation

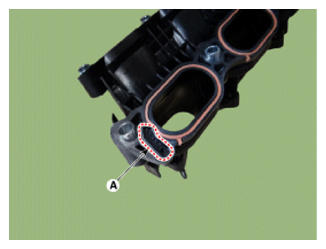

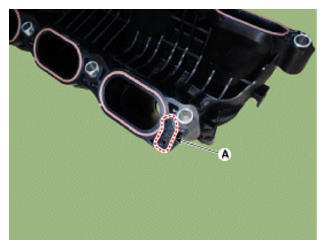

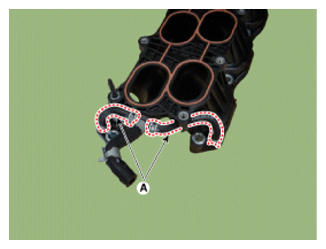

Install the new water gasket (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Always use a new water gasket.
Connect the water hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

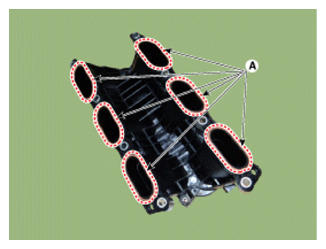

Install the new intake manifold gasket (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Always use a new intake manifold gasket.

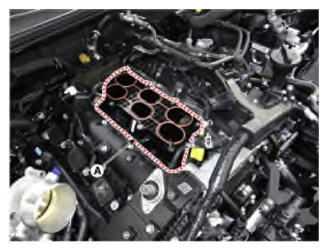

Install the intake manifold (A).

Courtesy of HYUNDAI MOTOR AMERICA
Tighten the intake manifold bolts, in several passes as below.
Tightening torque

1st step (a-h):

3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

2nd step (1 - 8):

26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb-ft)

Fig 1: Intake Manifold Bolts Tightening Sequence
Courtesy of HYUNDAI MOTOR AMERICA
Install the other parts in the reverse order of removal.
Fill the coolant.
(Refer to Cooling system - "COOLANT ")
Start engine and check for leaks.
Recheck engine coolant level.
