Front Door Lock Module Inspection

1. Remove the front door trim.

   (Refer to Body - "FRONT DOOR TRIM ")

2. Remove the front door module.

   (Refer to Body - "FRONT DOOR MODULE ")

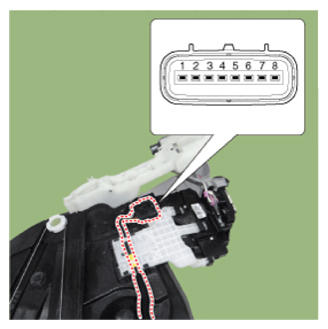

3. Disconnect the connector from the actuator.

   Courtesy of HYUNDAI MOTOR AMERICA

   [Central Lock]

   No	Pin Information
   	LH	RH
   1	-	AJAR switch
   2	Motor 1	COM
   3	Motor 2	Lock/Unlock switch
   4	-	-
   5	-	-
   6	Lock/Unlock switch	Motor 2
   7	COM	Motor 1
   8	AJAR switch	-

   [Dead Lock]

   No	Pin Information
   	LH	RH
   1	Motor 1	AJAR switch
   2	Motor 2	COM
   3	Motor 3	Lock/Unlock switch
   4	Key unlock switch	Key lock switch
   5	Key lock switch	Key unlock switch
   6	Lock/Unlock switch	Motor 3
   7	COM	Motor 2
   8	AJAR switch	Motor 1

4. Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

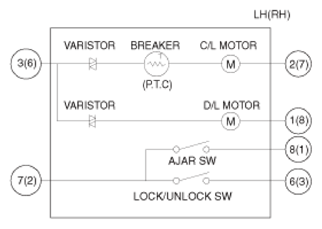

[Central Lock (Without key switch)]

Courtesy of HYUNDAI MOTOR AMERICA

[Dead Lock (Without Key Switch]

Courtesy of HYUNDAI MOTOR AMERICA

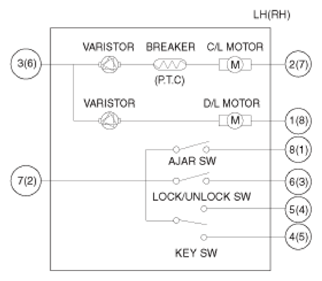

[Dead Lock (With Key Switch)]

Courtesy of HYUNDAI MOTOR AMERICA

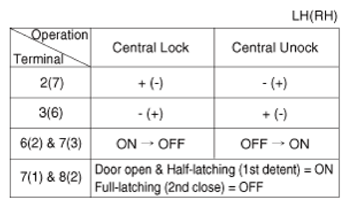

[Central Lock]

Courtesy of HYUNDAI MOTOR AMERICA

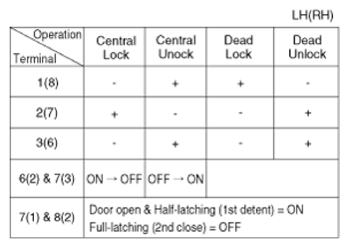

[Dead Lock]

Courtesy of HYUNDAI MOTOR AMERICA
