Repair Procedures: Disassembly

  1. Loosen the screw and then remove the paddle shift switch (A).

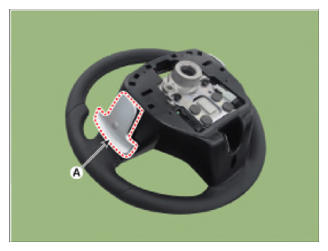

    G13540646Courtesy of HYUNDAI MOTOR AMERICA

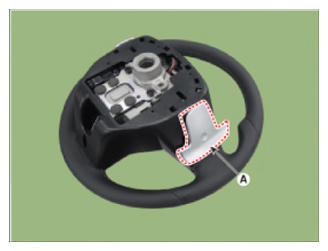

    G13540647Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the paddle shift switch connector (A).

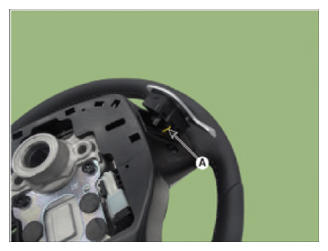

    G13540648Courtesy of HYUNDAI MOTOR AMERICA

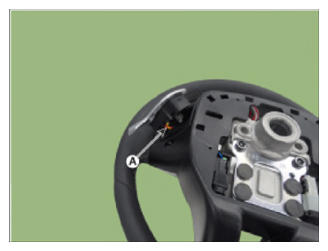

    G13540649Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the screw and then remove the remote control switch (A) and upper cover (B).

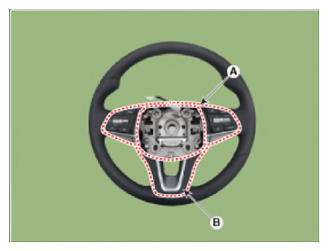

    G13540650Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the remote control switch connector (A).

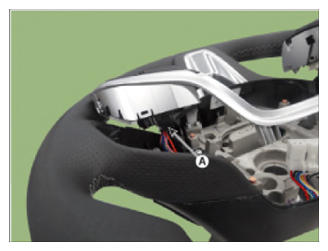

    G13540651Courtesy of HYUNDAI MOTOR AMERICA

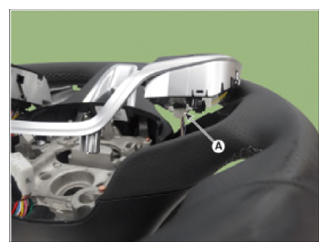

    G13540652Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the screw and then remove the haptic motor (A).

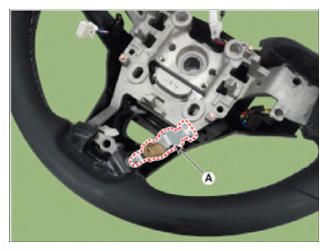

    G13540653Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the wiring connector (A).

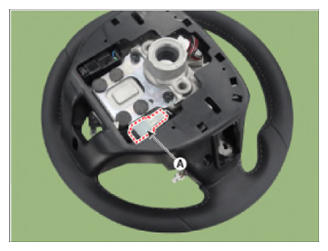

    G13540654Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the lower cover (A).

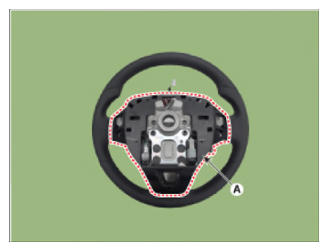

    G13540655Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the wiring (A) from the lower cover.

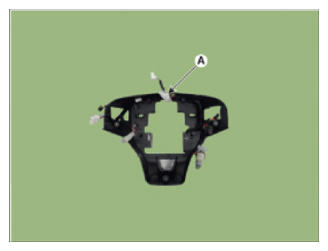

    G13540656Courtesy of HYUNDAI MOTOR AMERICA
  9. Reassembly in the reverse order of disassembly.
