Repair Procedures: Replacement

CAUTION:
  • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
  • Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
  • In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.
  1. Park the car on level ground.
  2. Drain engine oil.
    1. Remove the oil filler cap (A).
      G13542947Courtesy of HYUNDAI MOTOR AMERICA
    2. Remove the engine room rear under cover.

      (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

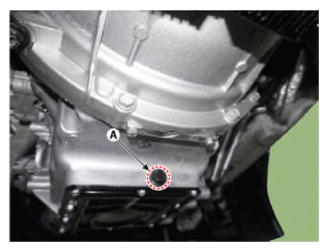

    3. Remove the oil drain plug (A) and drain oil into a container.
    G13542948Courtesy of HYUNDAI MOTOR AMERICA
  3. Replace the oil filter.

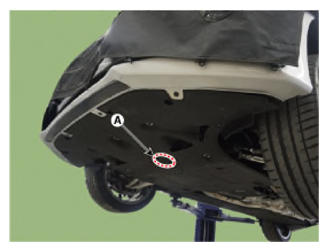

    1. Remove the oil filter cover (A).
      G13542949Courtesy of HYUNDAI MOTOR AMERICA

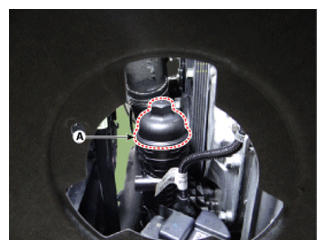

    2. Remove the oil filter cap (A).
      G13542950Courtesy of HYUNDAI MOTOR AMERICA
    3. Replace the O-ring (A) of oil filter cap with a new one.
      G13542951Courtesy of HYUNDAI MOTOR AMERICA
    4. Replace the new oil filter element (A).
      G13542952Courtesy of HYUNDAI MOTOR AMERICA
    5. Check and clean the oil filter installation surface.
    6. Apply clean engine oil to the new O-rings (A).
      G13542953Courtesy of HYUNDAI MOTOR AMERICA
    7. Lightly screw the oil filter cap into place, and tighten it until the O-ring contacts the seat.
      NOTE:
      • Check if the O-ring (A) is installed correctly inside the cap.
      G13542954Courtesy of HYUNDAI MOTOR AMERICA
    8. Finally tighten it again to the specified tightening torque.

      Tightening torque:

      35.3 N.m (3.6 kgf.m, 26.0 lb-ft)

  4. Fill new engine oil.
    1. Install the oil drain plug (A) with a new gasket.

      Tightening torque:

      34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb-ft)

      G13542955Courtesy of HYUNDAI MOTOR AMERICA
    2. Install the engine room rear under cover.

      (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

    3. Fill with new engine oil while checking the oil level on the oil level gauge.

      Capacity

      Total:

      7.7 L (8.14 US qt, 6.77 Imp.qt., 2.03 US gal.)

      Oil pan:

      6.7 L (7.19 U.S qt., 5.98 Imp.qt., 1.80 U.S gal.)

      Drain and refill including oil filter:

      6.8 L (7.29 U.S qt., 6.07 Imp.qt., 1.82 U.S gal.)

      NOTE:
      • Fill the crankcase to about half the capacity and then fill the remainder after waiting.
      • Do not fill oil over the "F" mark. Frequently check the level with the oil level gauge to ensure no overfilling.

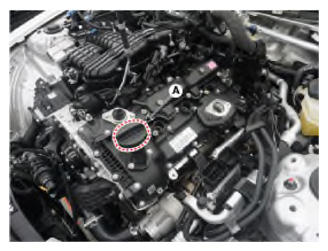

    4. Install the oil filler cap (A) and the oil level gauge.
    G13542956Courtesy of HYUNDAI MOTOR AMERICA
  5. Start the engine and check that no oil is leaking from the drain plug or oil filter.
  6. Recheck the engine oil level.
    NOTE:
    • When rechecking the engine oil level, be sure to warm up the engine sufficiently. Otherwise, the measured engine oil level may not reach the specification.
