Circuit Diagram: Notes

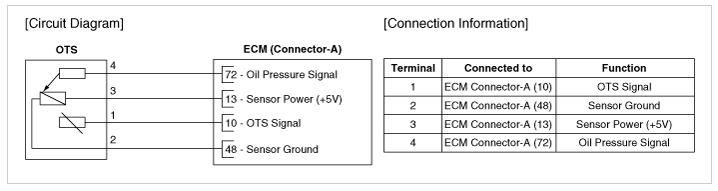

Fig 1: CVVT Oil Temperature Sensor (OTS) - System Circuit
G00583342Courtesy of HYUNDAI MOTOR AMERICA
