Components Location

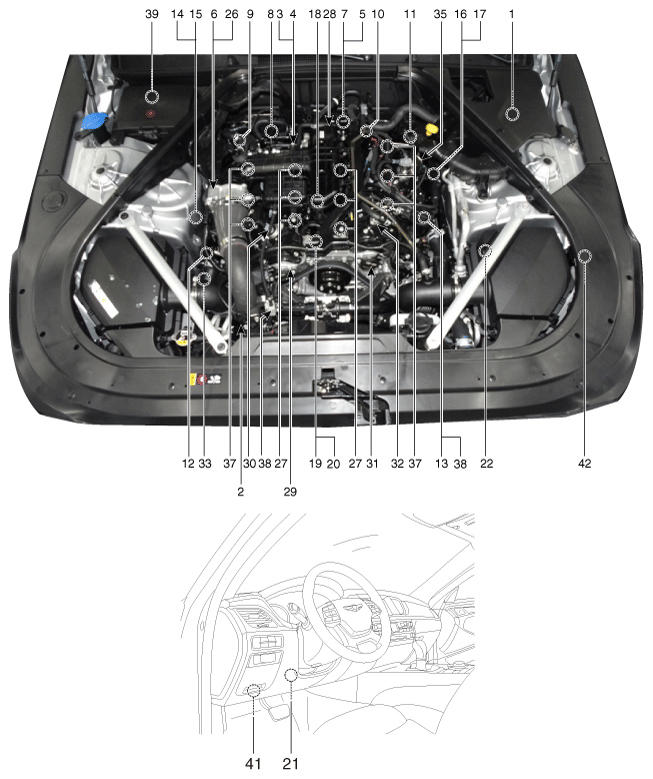

G12663613Courtesy of HYUNDAI MOTOR AMERICA

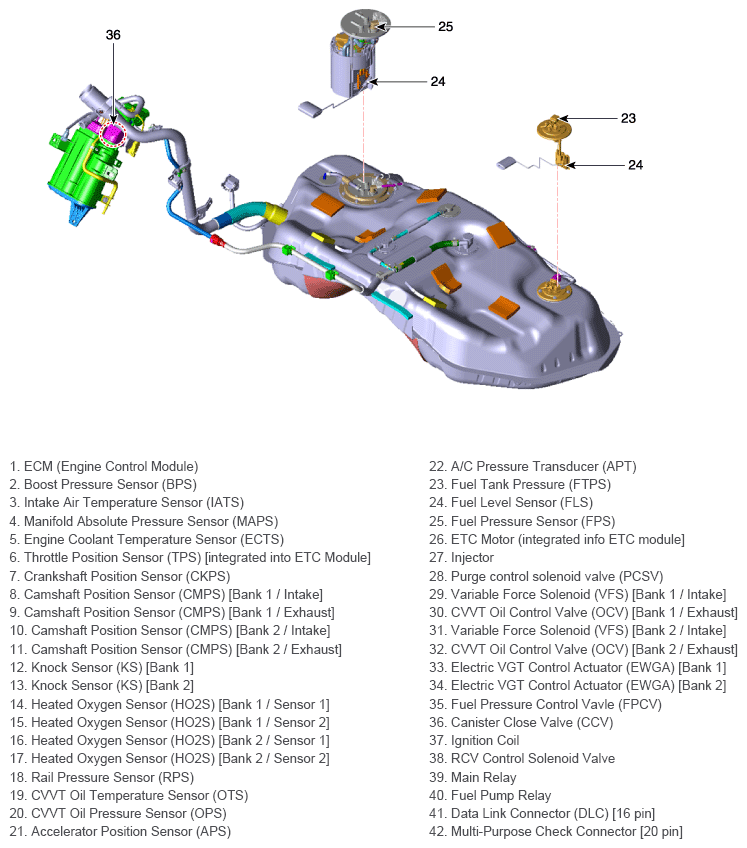

G12663614Courtesy of HYUNDAI MOTOR AMERICA

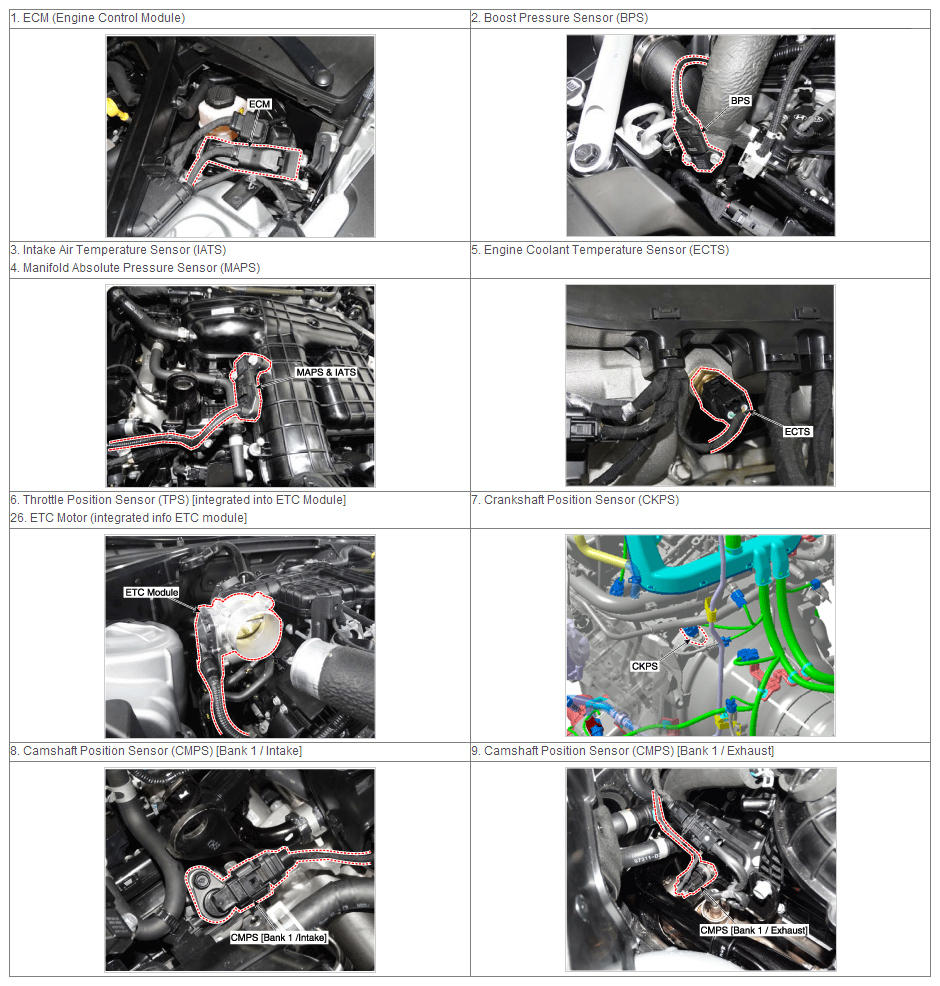

G12663615Courtesy of HYUNDAI MOTOR AMERICA

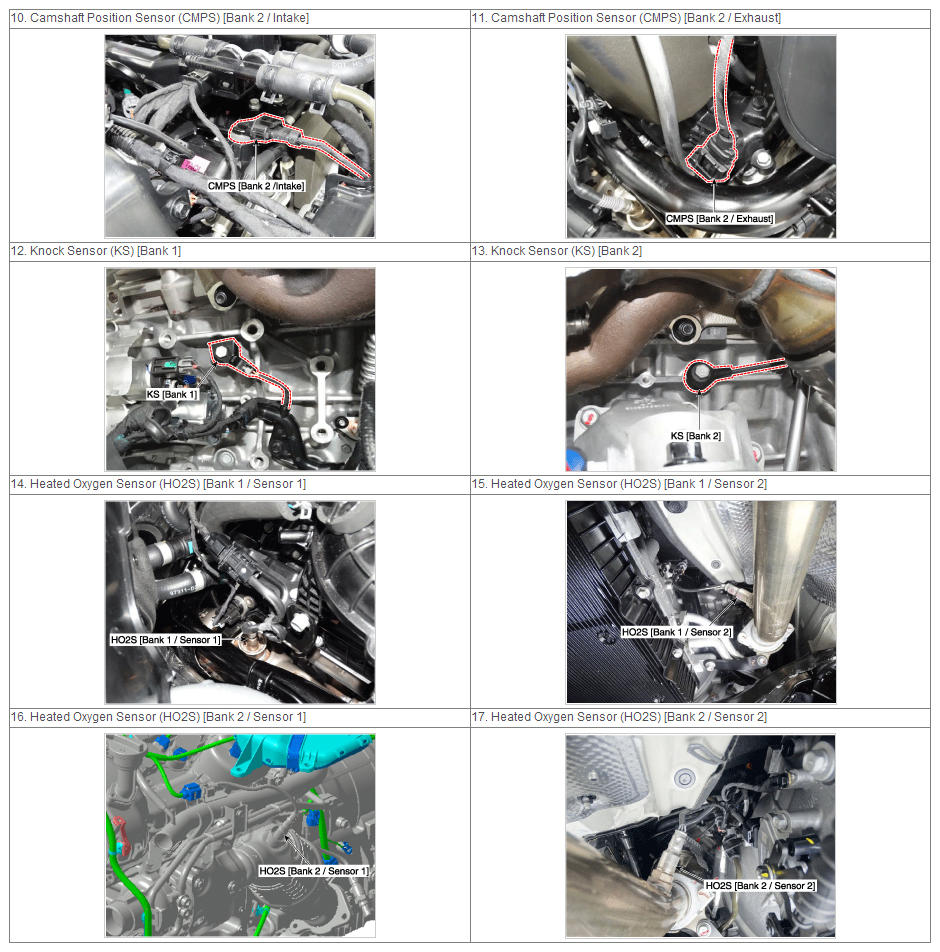

G12663616Courtesy of HYUNDAI MOTOR AMERICA

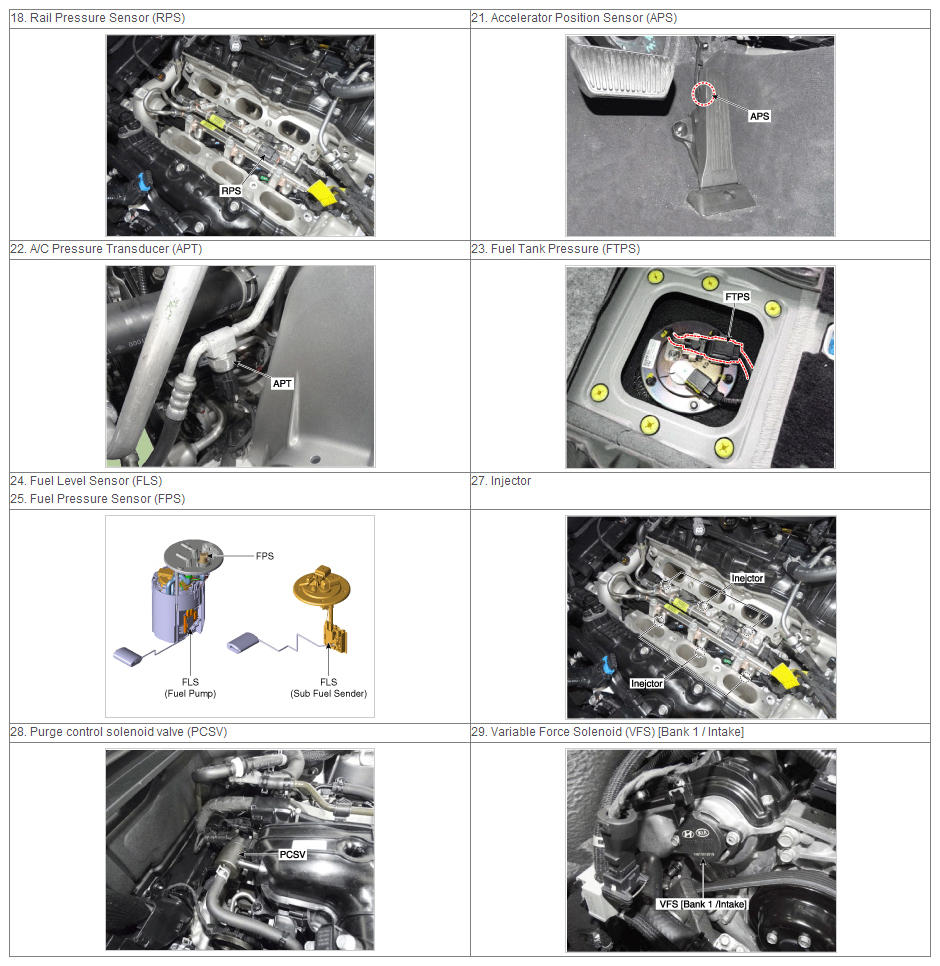

G12663617Courtesy of HYUNDAI MOTOR AMERICA

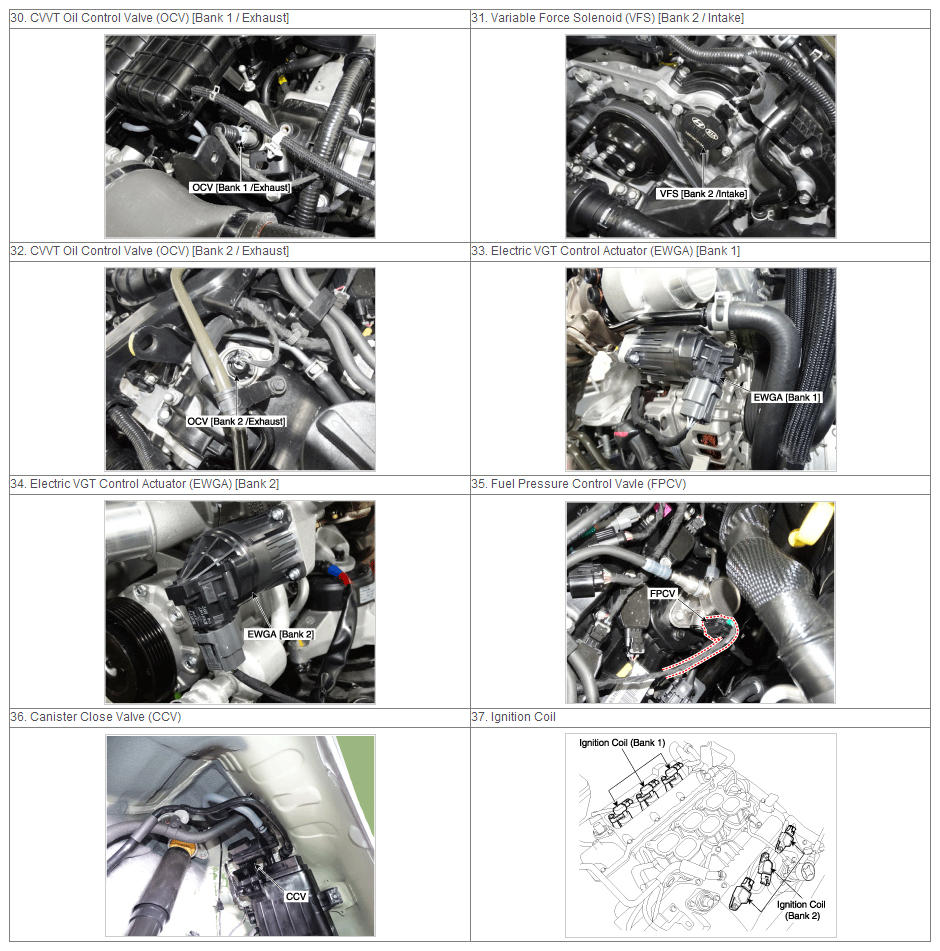

G12663618Courtesy of HYUNDAI MOTOR AMERICA

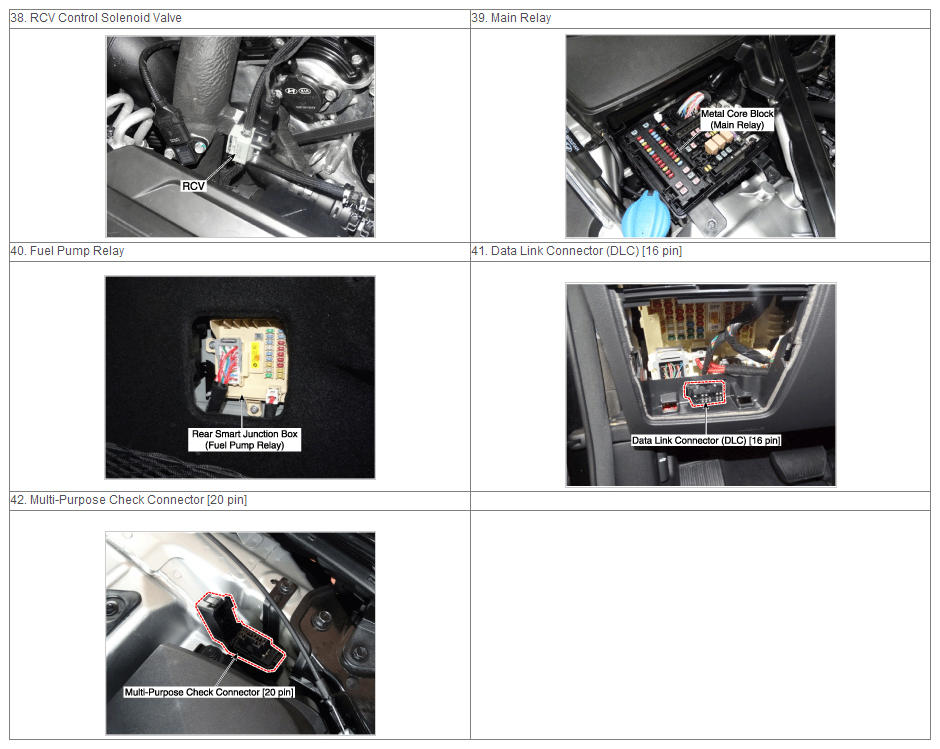

G12663619Courtesy of HYUNDAI MOTOR AMERICA
