Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

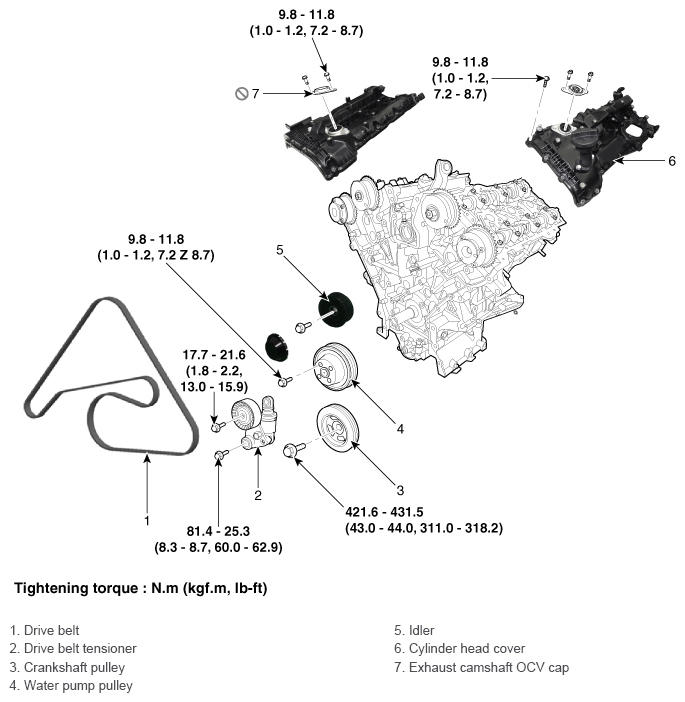

Fig 1: Exploded View Of Timing System Components With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

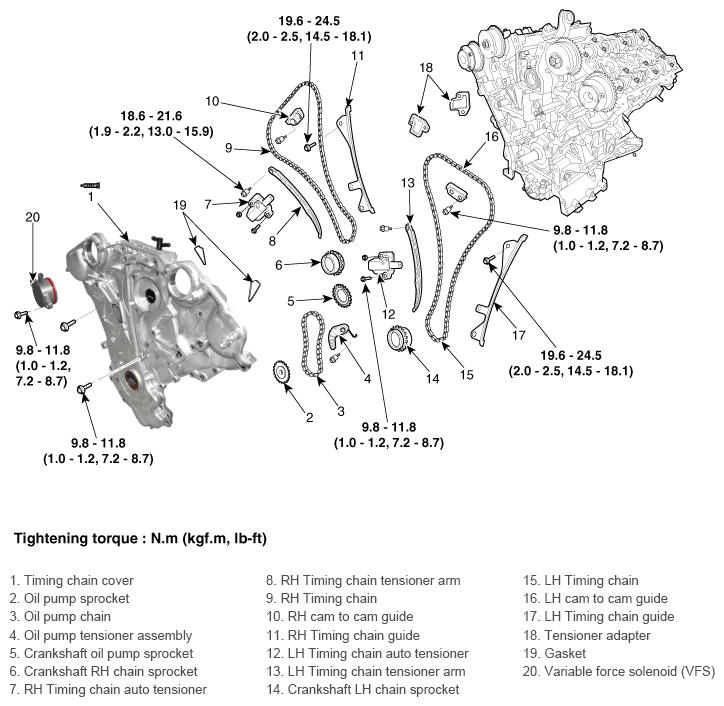

Fig 2: Exploded View Of Timing System Components With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
