Components Location

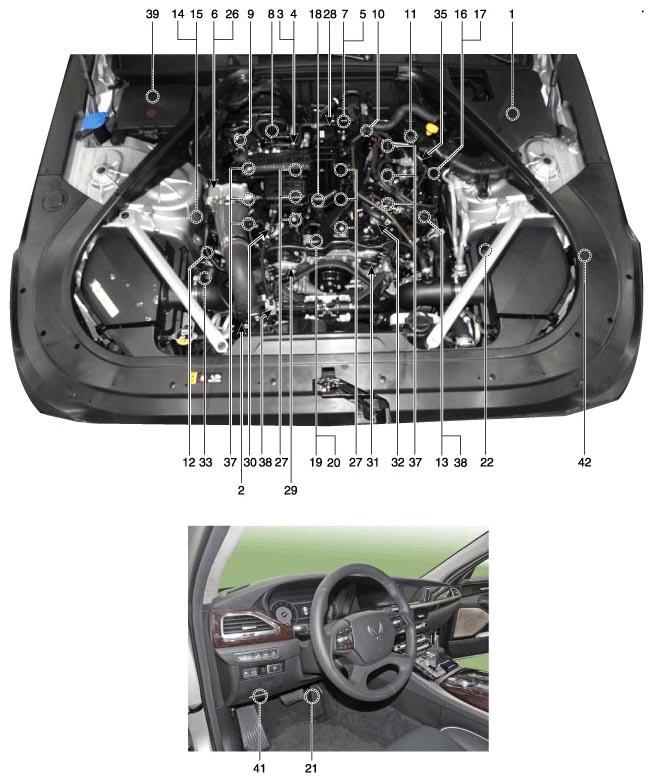

G12715594Courtesy of HYUNDAI MOTOR AMERICA

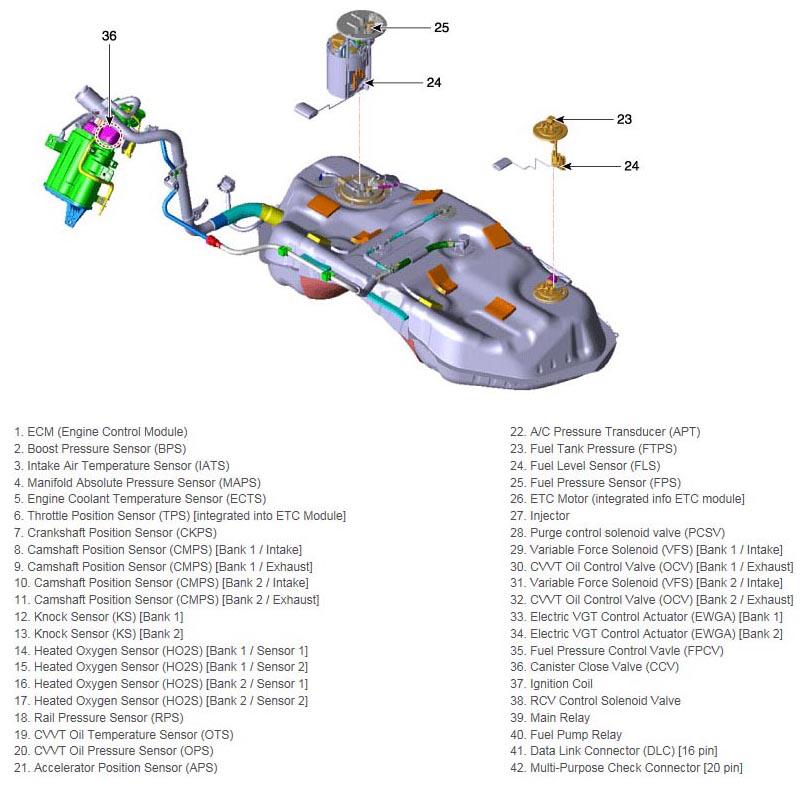

G12715595Courtesy of HYUNDAI MOTOR AMERICA

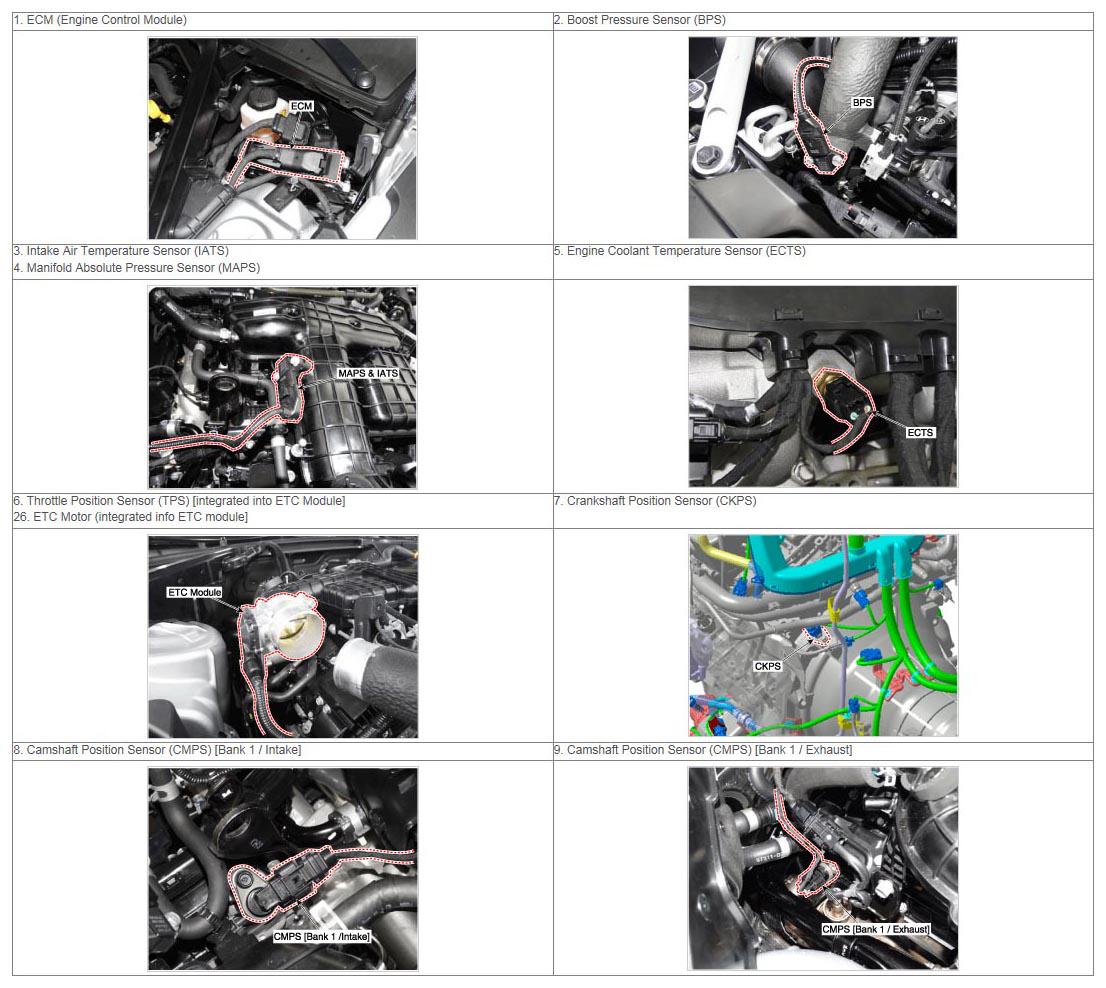

G12715596Courtesy of HYUNDAI MOTOR AMERICA

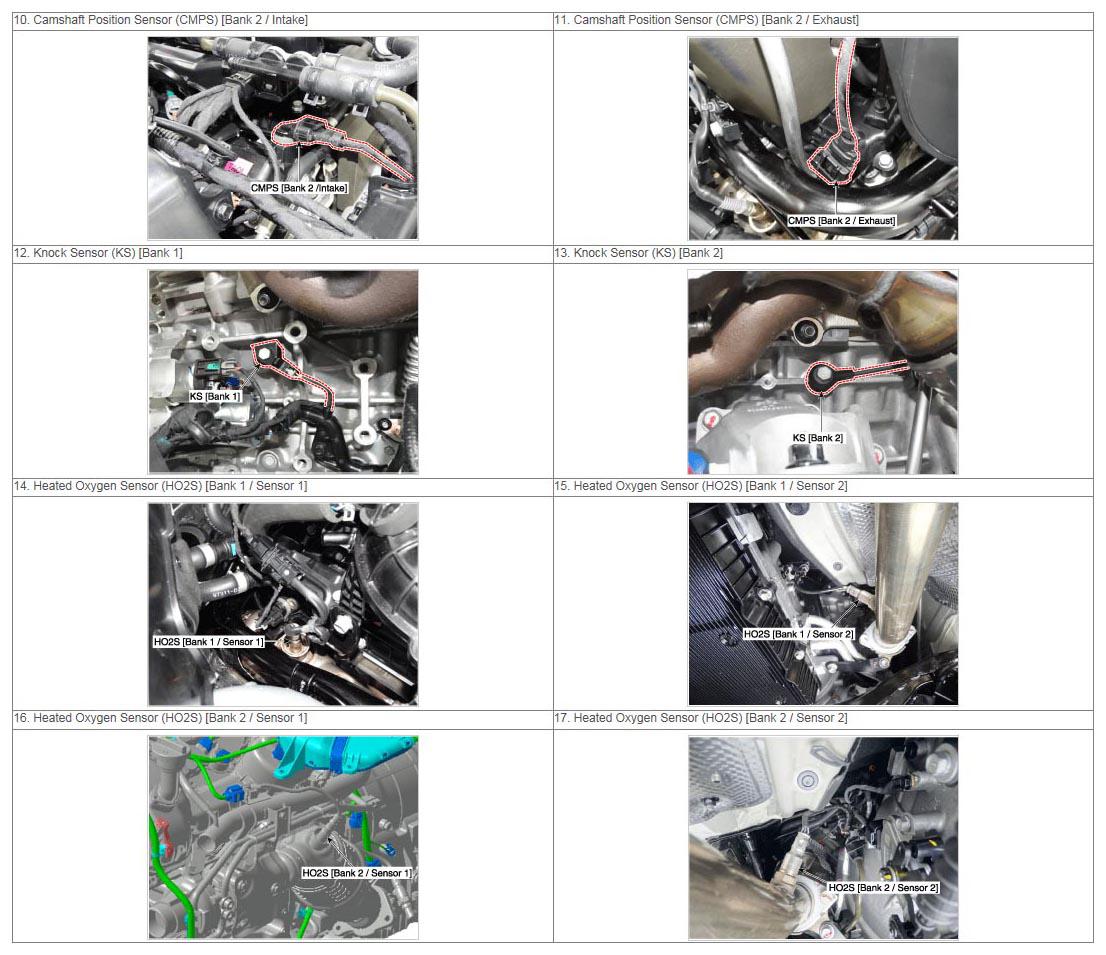

G12715597Courtesy of HYUNDAI MOTOR AMERICA

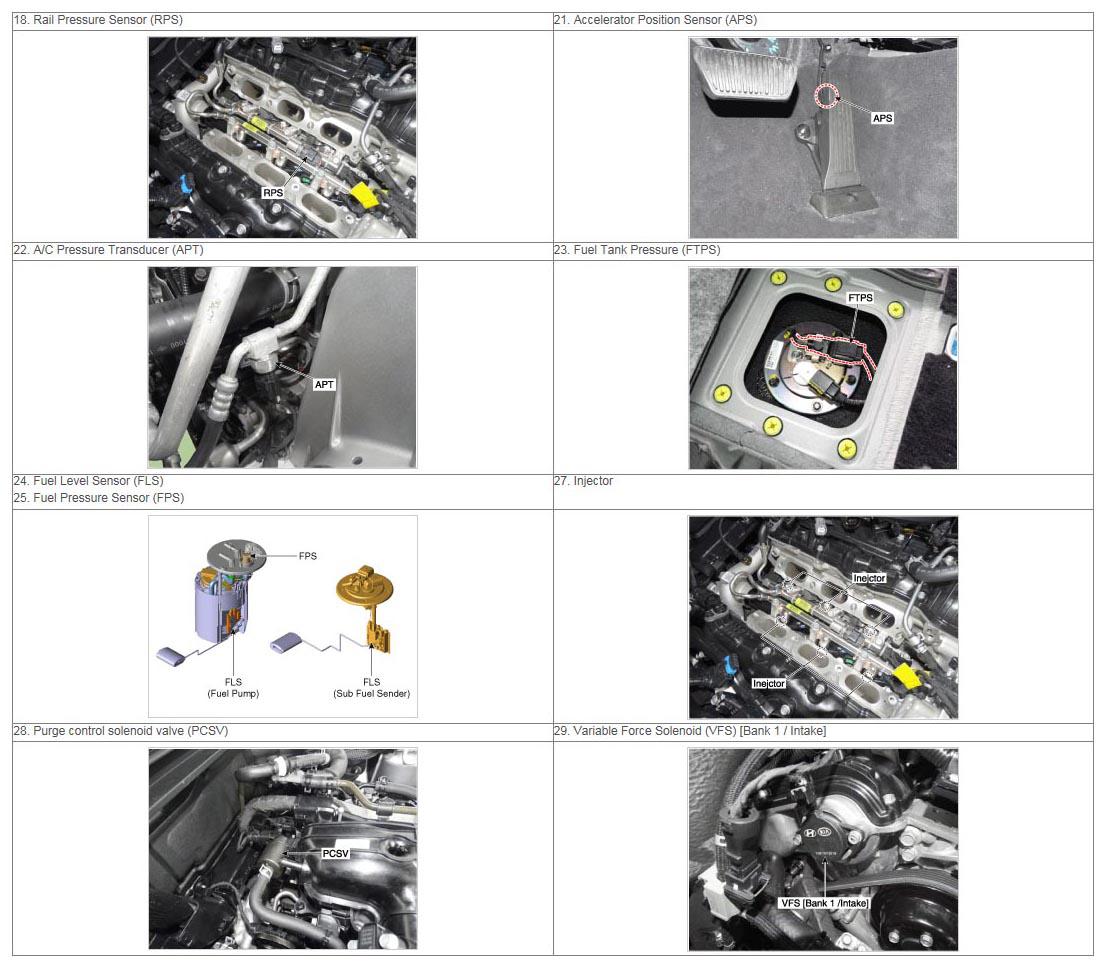

G12715598Courtesy of HYUNDAI MOTOR AMERICA

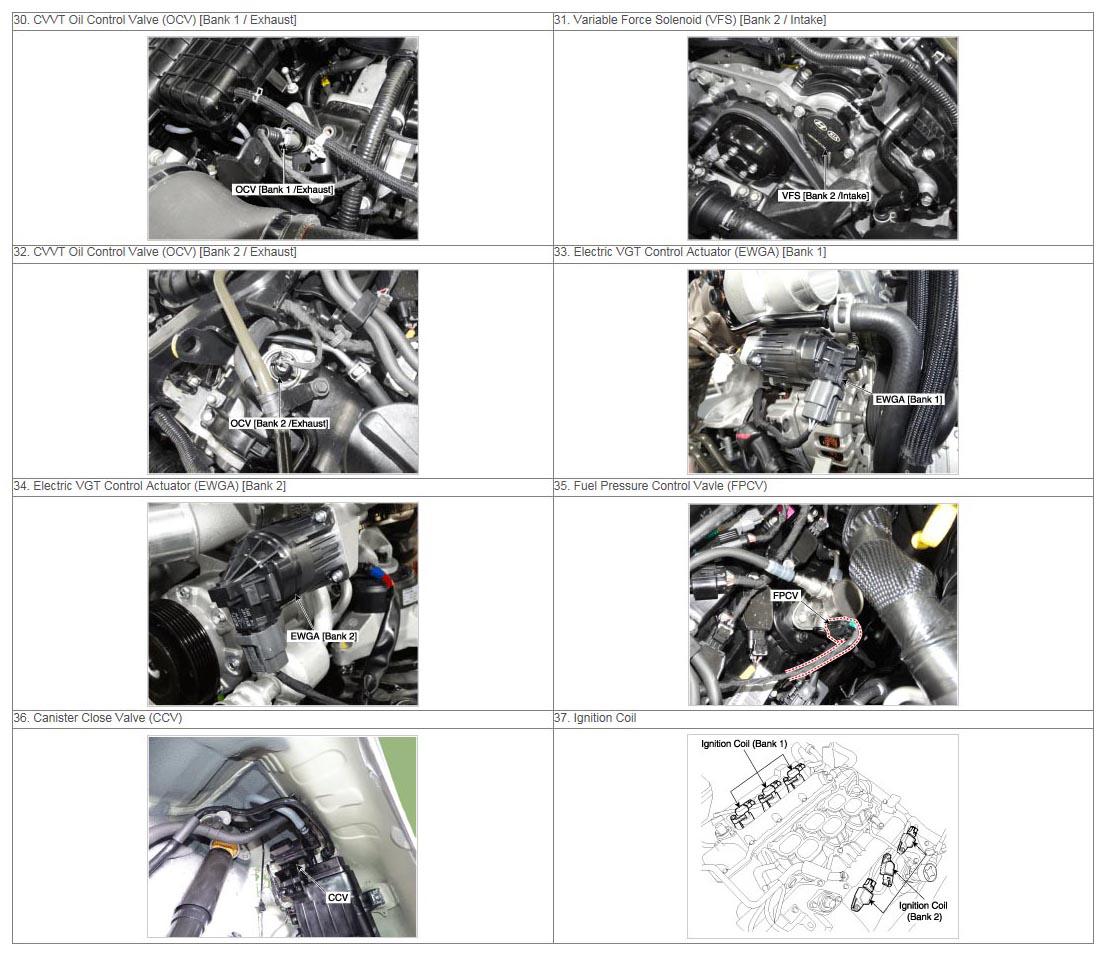

G12715599Courtesy of HYUNDAI MOTOR AMERICA

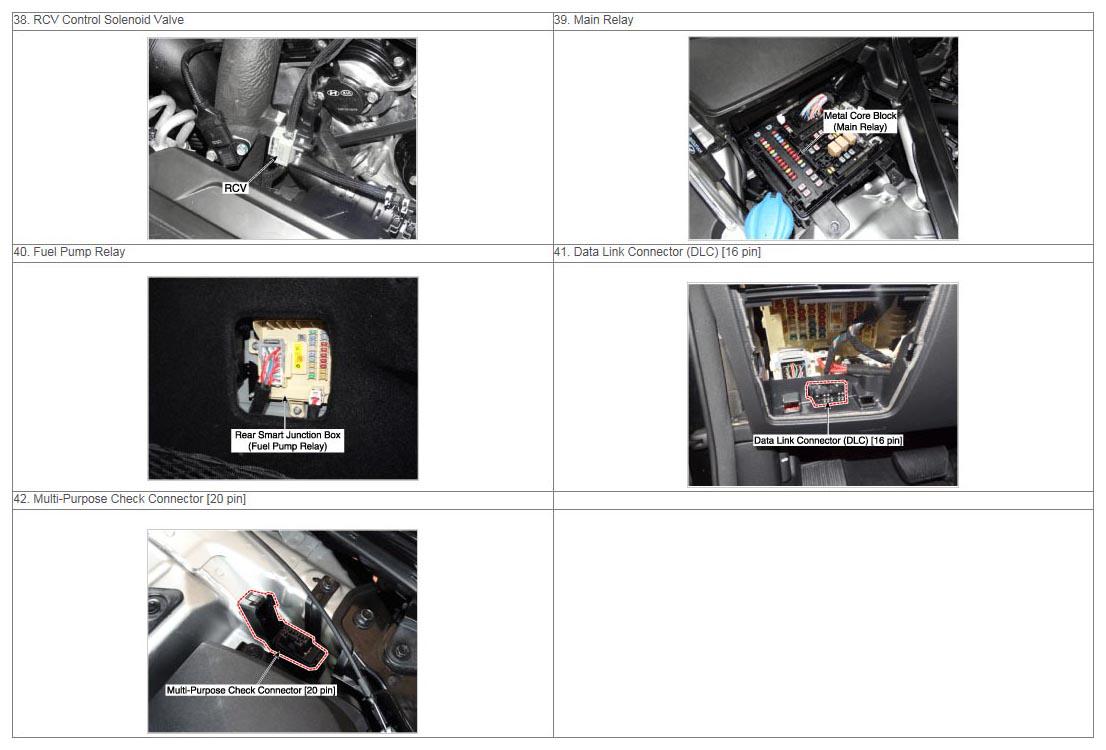

G12715600Courtesy of HYUNDAI MOTOR AMERICA
