Components Location

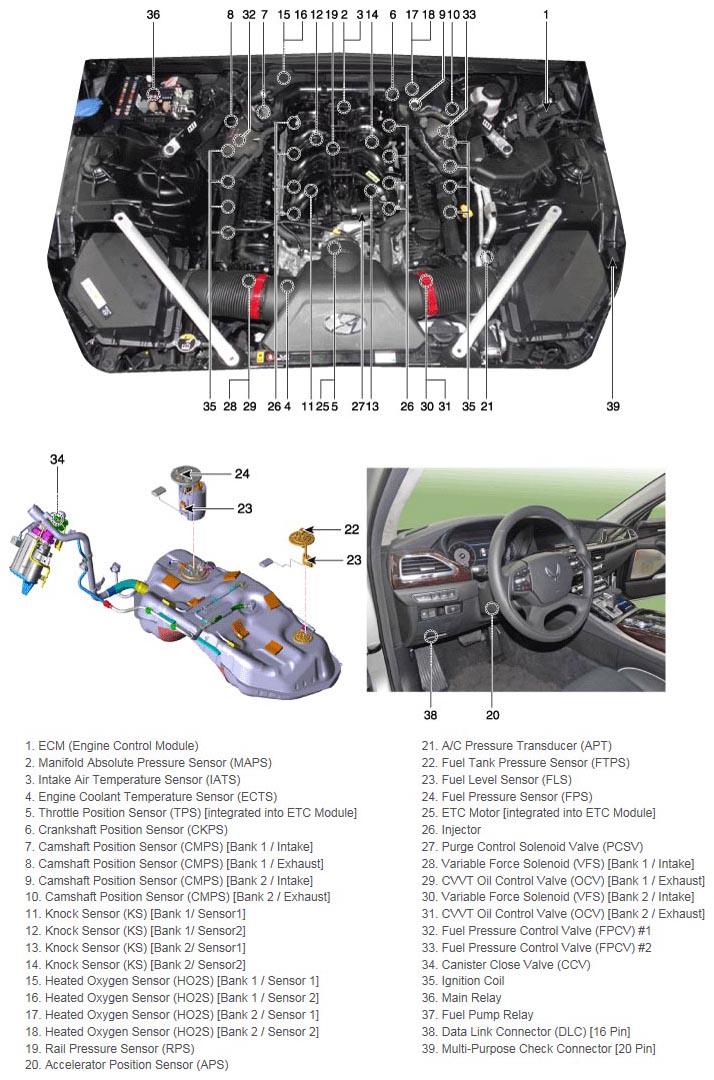

G12720351Courtesy of HYUNDAI MOTOR AMERICA

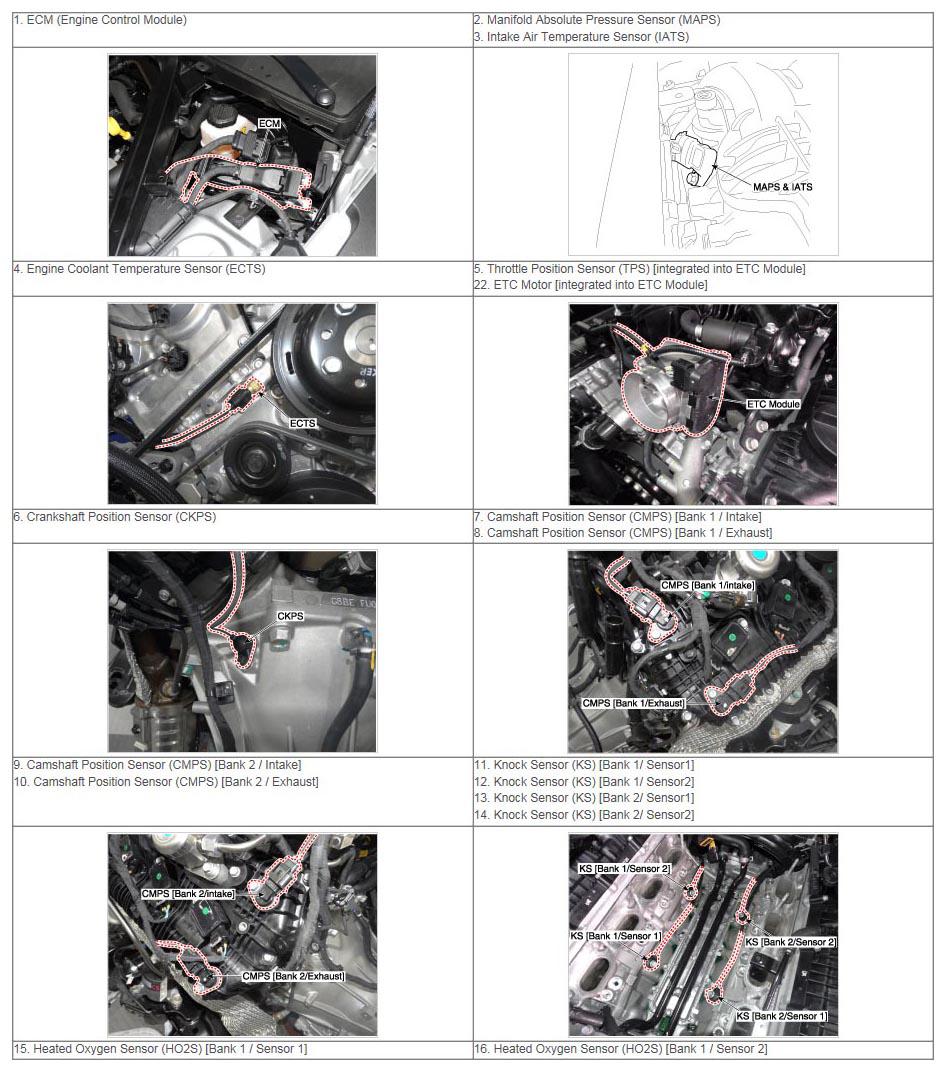

G12720352Courtesy of HYUNDAI MOTOR AMERICA
G12720353Courtesy of HYUNDAI MOTOR AMERICA

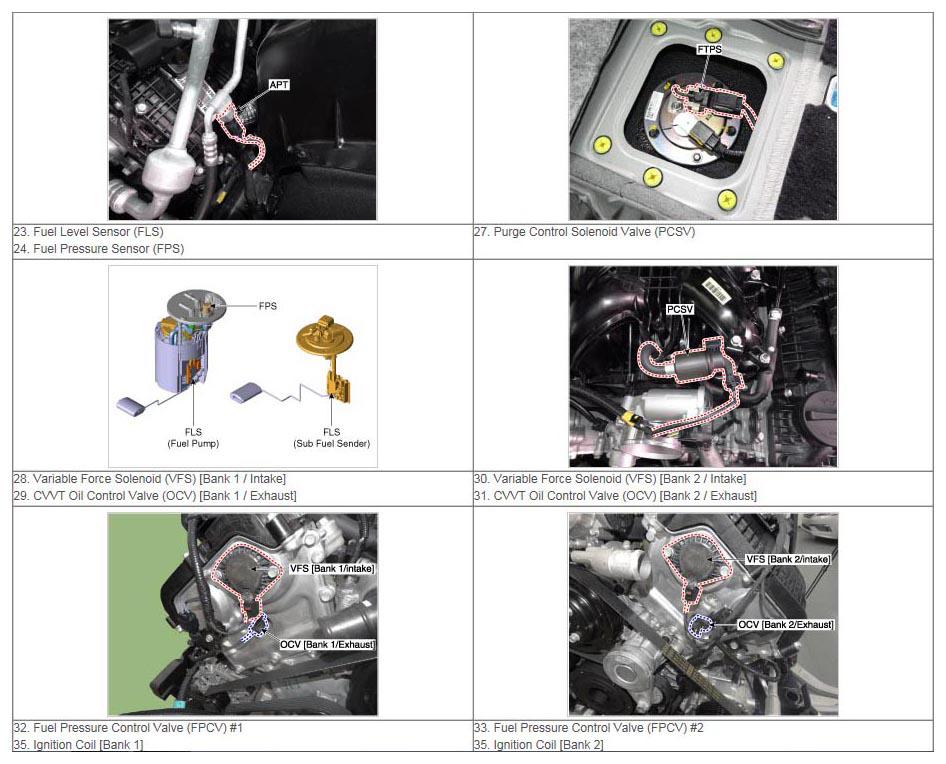

G12720354Courtesy of HYUNDAI MOTOR AMERICA

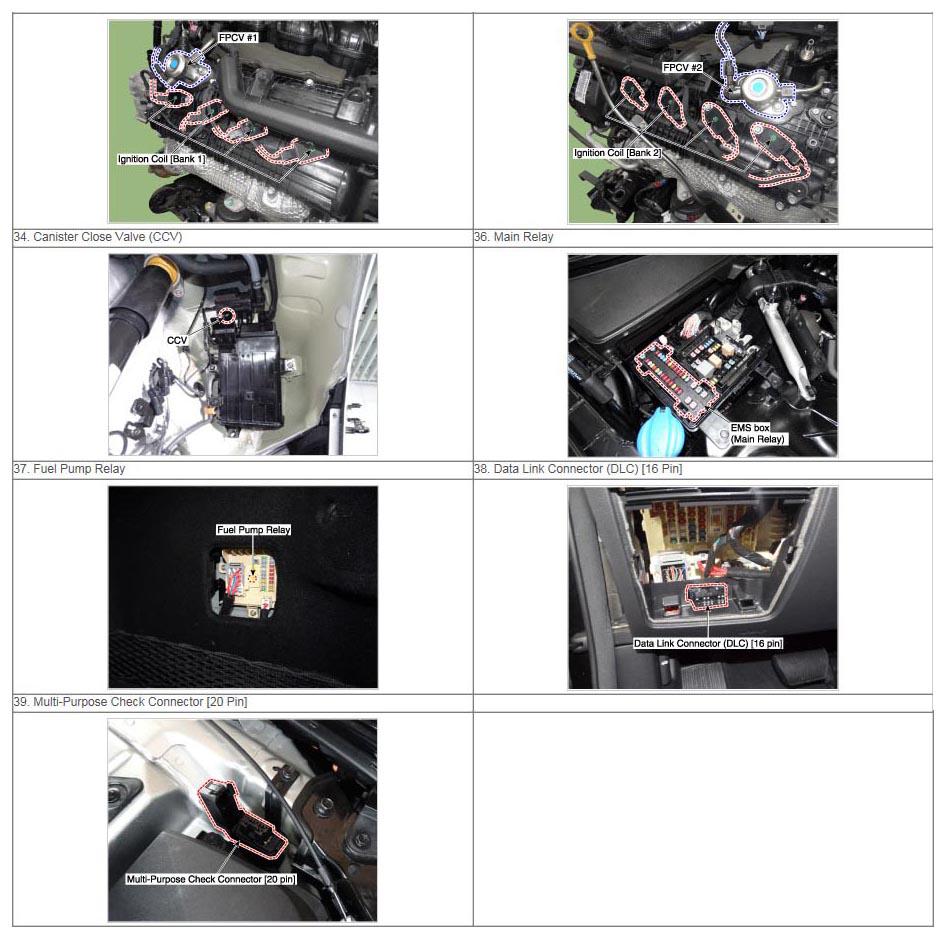

G12720355Courtesy of HYUNDAI MOTOR AMERICA
