Components And Components Location: Components

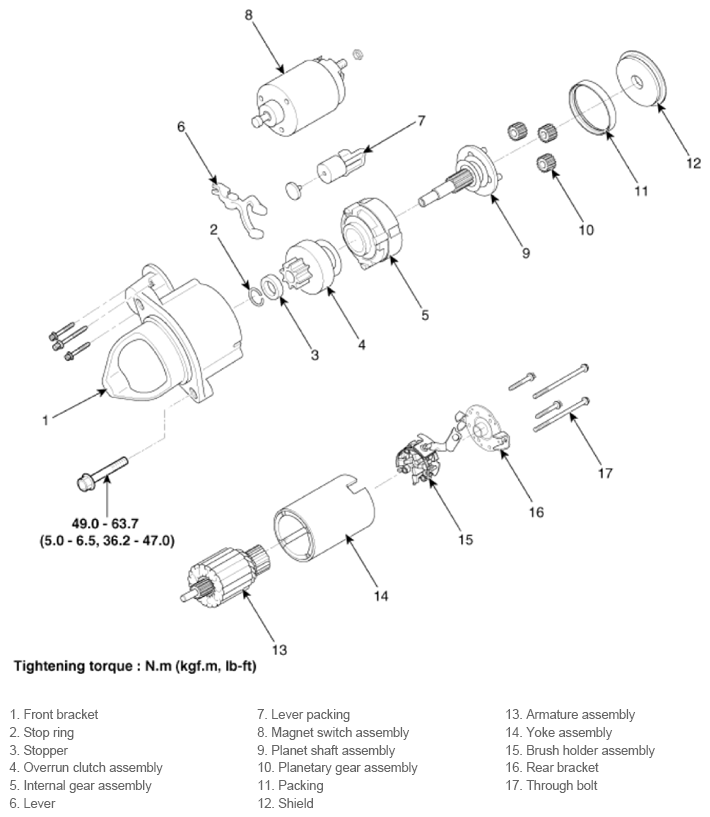

Fig 1: Starter Components Location With Torque Specification
G13539146Courtesy of HYUNDAI MOTOR AMERICA
