Components Location

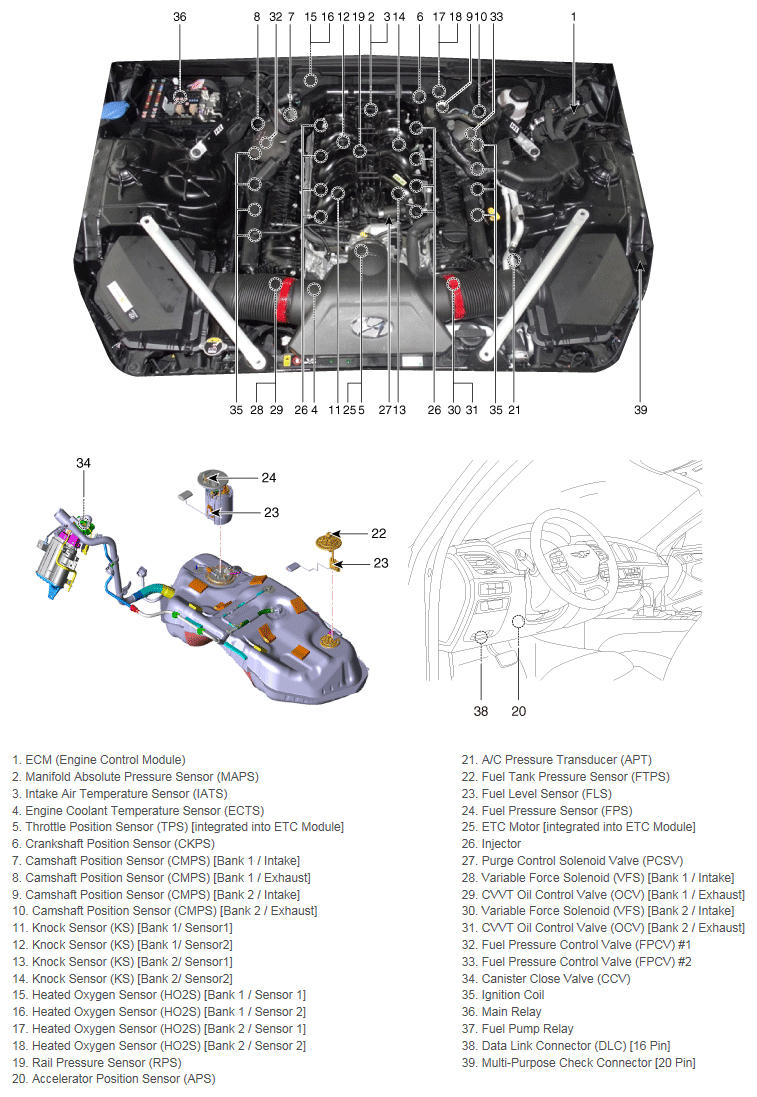

G12661531Courtesy of HYUNDAI MOTOR AMERICA

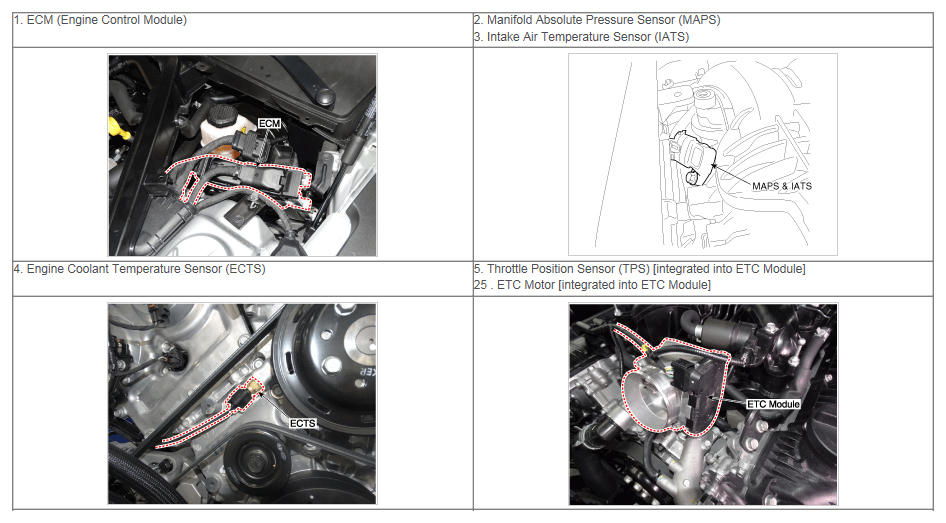

G12661532Courtesy of HYUNDAI MOTOR AMERICA

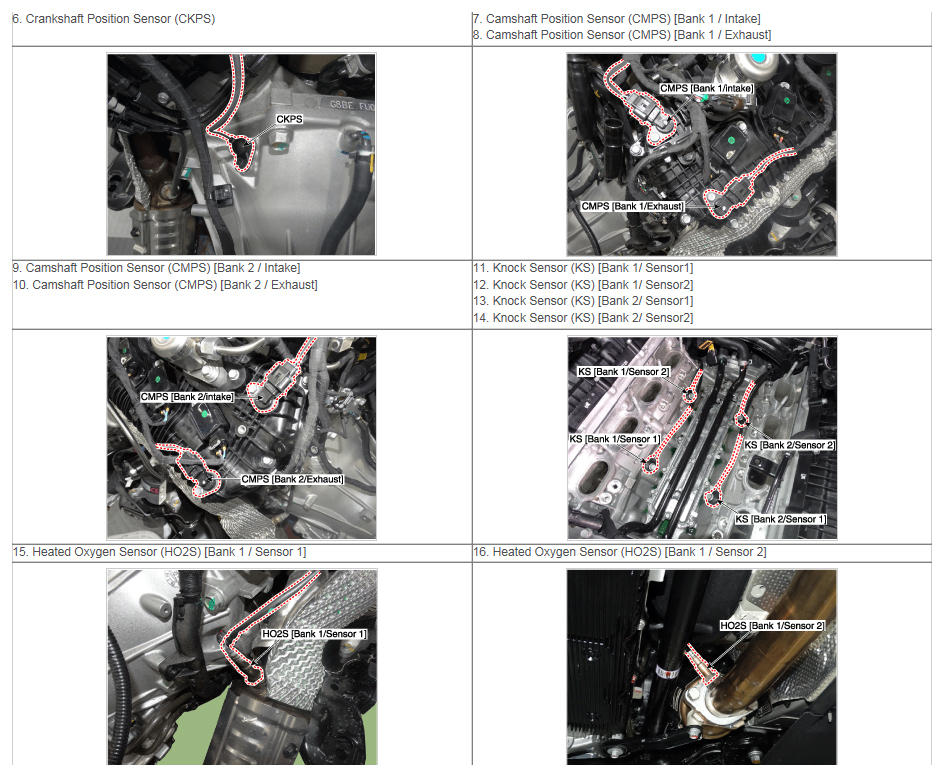

G12661533Courtesy of HYUNDAI MOTOR AMERICA

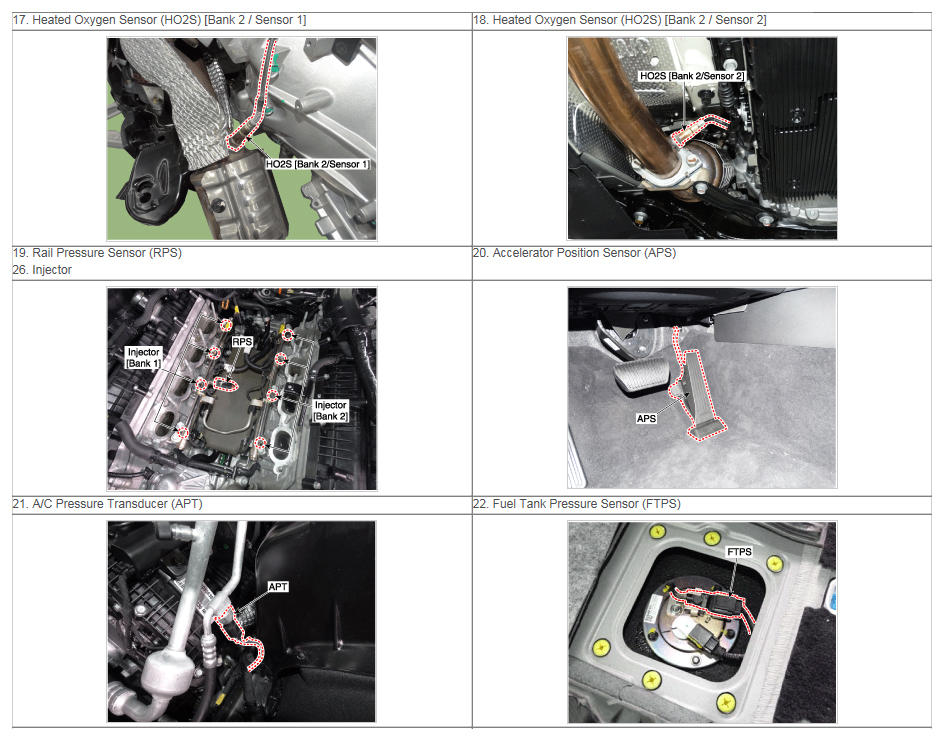

G12661534Courtesy of HYUNDAI MOTOR AMERICA

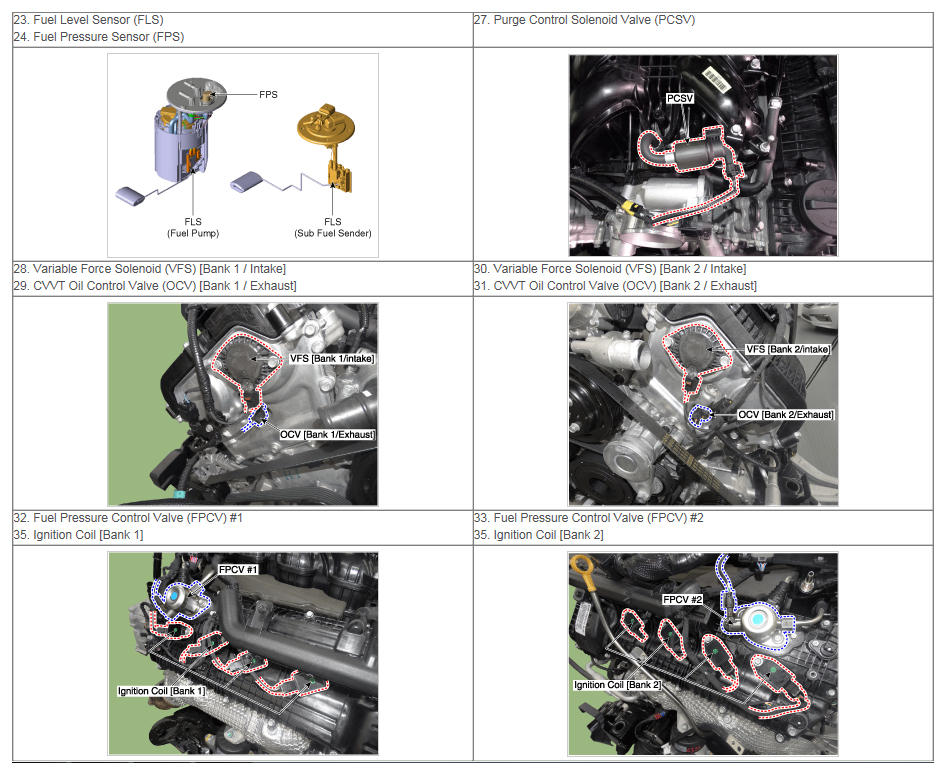

G12661535Courtesy of HYUNDAI MOTOR AMERICA

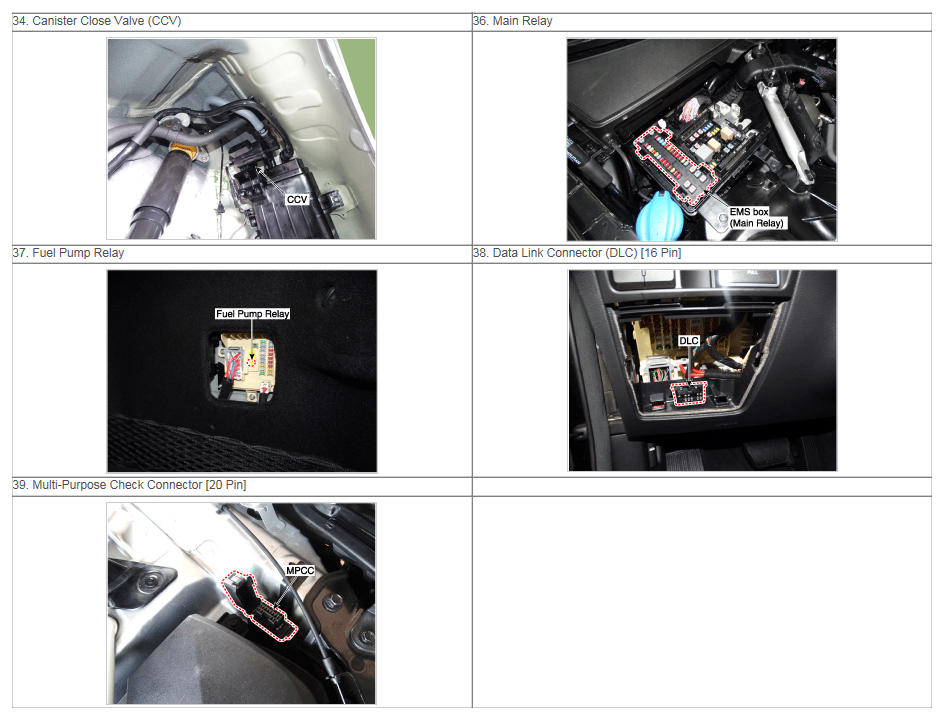

G12661536Courtesy of HYUNDAI MOTOR AMERICA
