Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the delivery pipe and injector.
(Refor to Fuel Delivery System - "DELIVERY PIPE ")

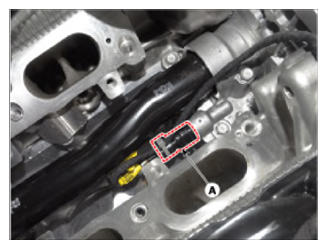

- Disconnect the connector (A), and then remove the CVVT oil temperature sensor (B).
NOTE:
- When removing and installing the oil temperature sensor, use a deep socket as shown in the illustration below.
- 3/8" drive deep socket (24 mm) with the wall thin and the length less than 75 mm.
[Arrangement of tools for removing oil temperature sensor]
[Installation order for tools]
- Insert a 24 mm (0.94 in.) deep socket (A) to the oil temperature sensor.
- After connecting other tools as arranged in the above image, insert the tools (A) to socket.
