Components Location

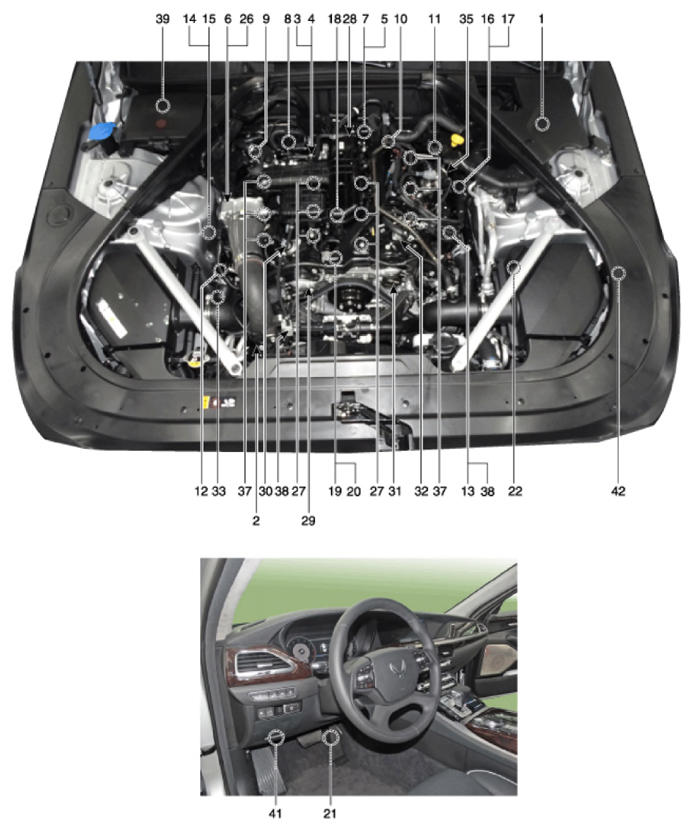

G13547492Courtesy of HYUNDAI MOTOR AMERICA

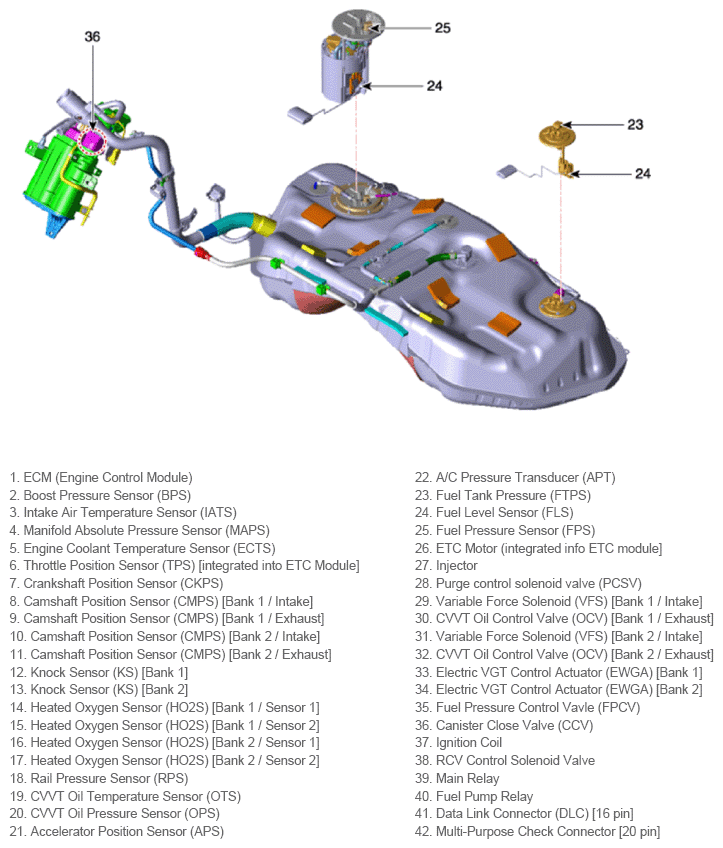

G13547493Courtesy of HYUNDAI MOTOR AMERICA

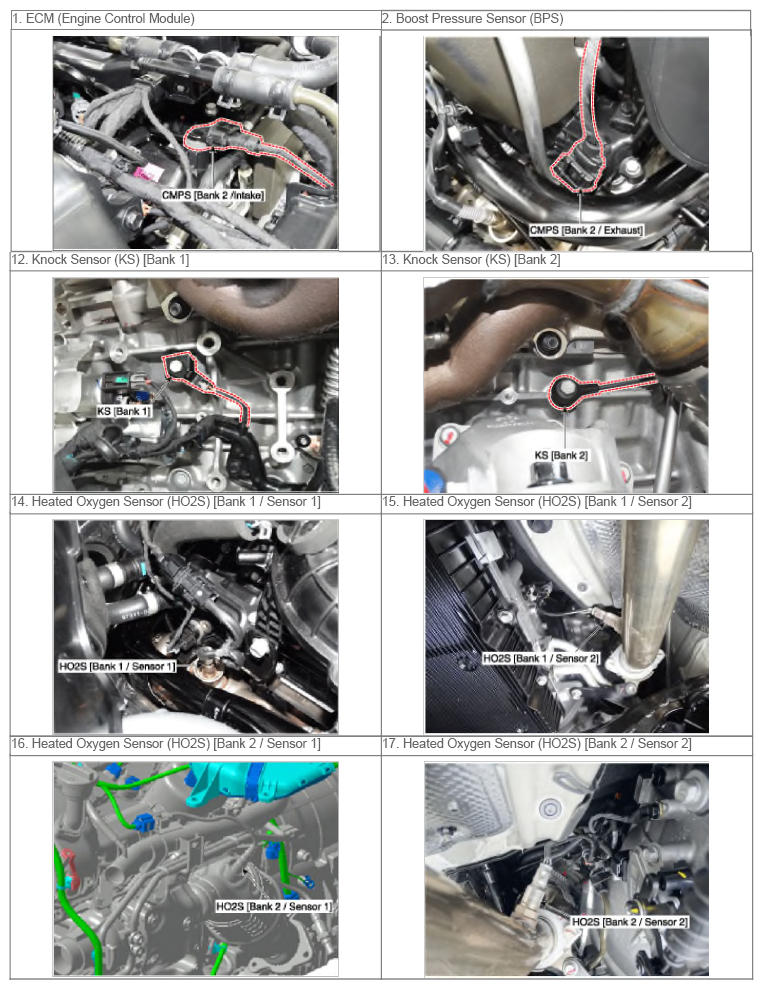

G13547494Courtesy of HYUNDAI MOTOR AMERICA
G13547495Courtesy of HYUNDAI MOTOR AMERICA
G13547496Courtesy of HYUNDAI MOTOR AMERICA

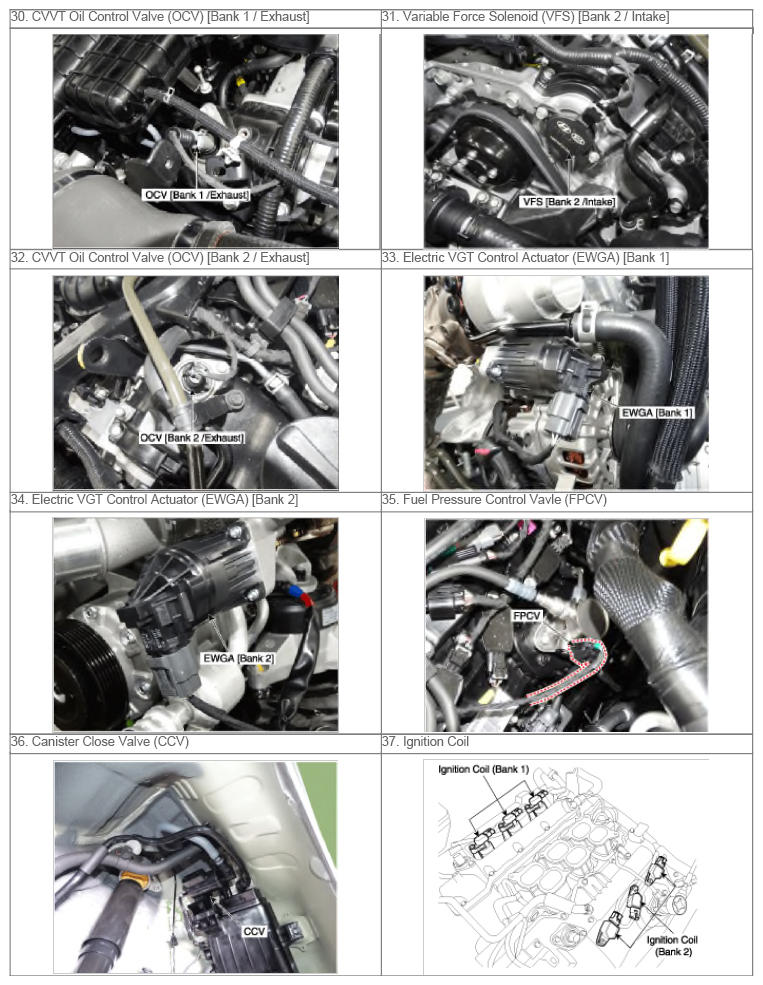

G13547497Courtesy of HYUNDAI MOTOR AMERICA

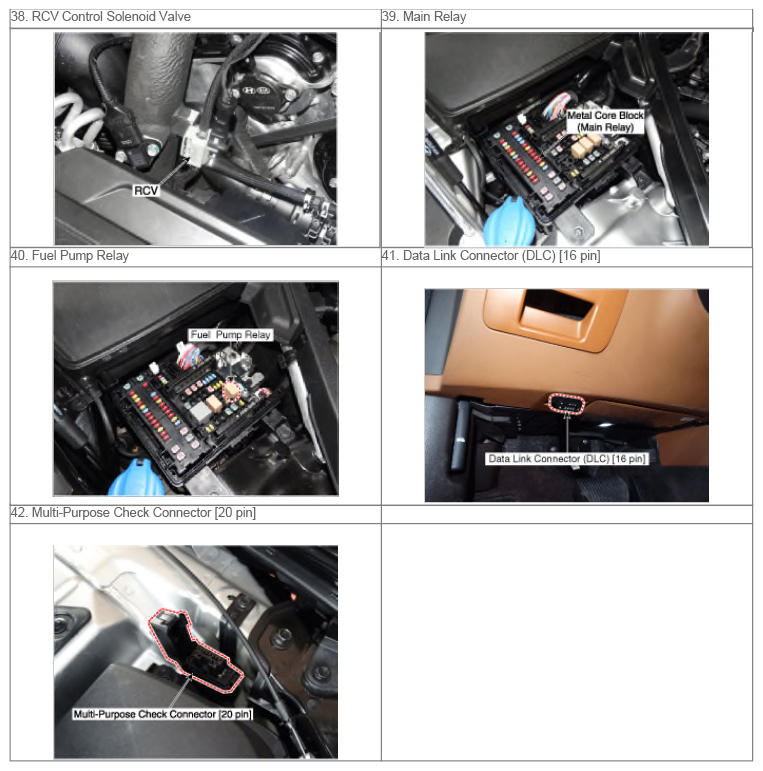

G13547498Courtesy of HYUNDAI MOTOR AMERICA
