Accelerator Position Sensor (APS): Specifications: Specification

Pedal Position Output Voltage (V) [Vref = 5.0V]
APS1 APS2
C.T 0.7-0.8 0.33-0.43
W.O.T 3.98-4.22 1.93-2.17

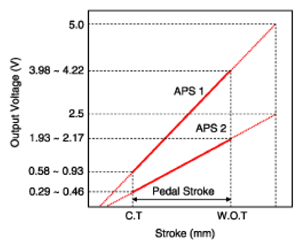

G13551360Courtesy of HYUNDAI MOTOR AMERICA
