Components Location

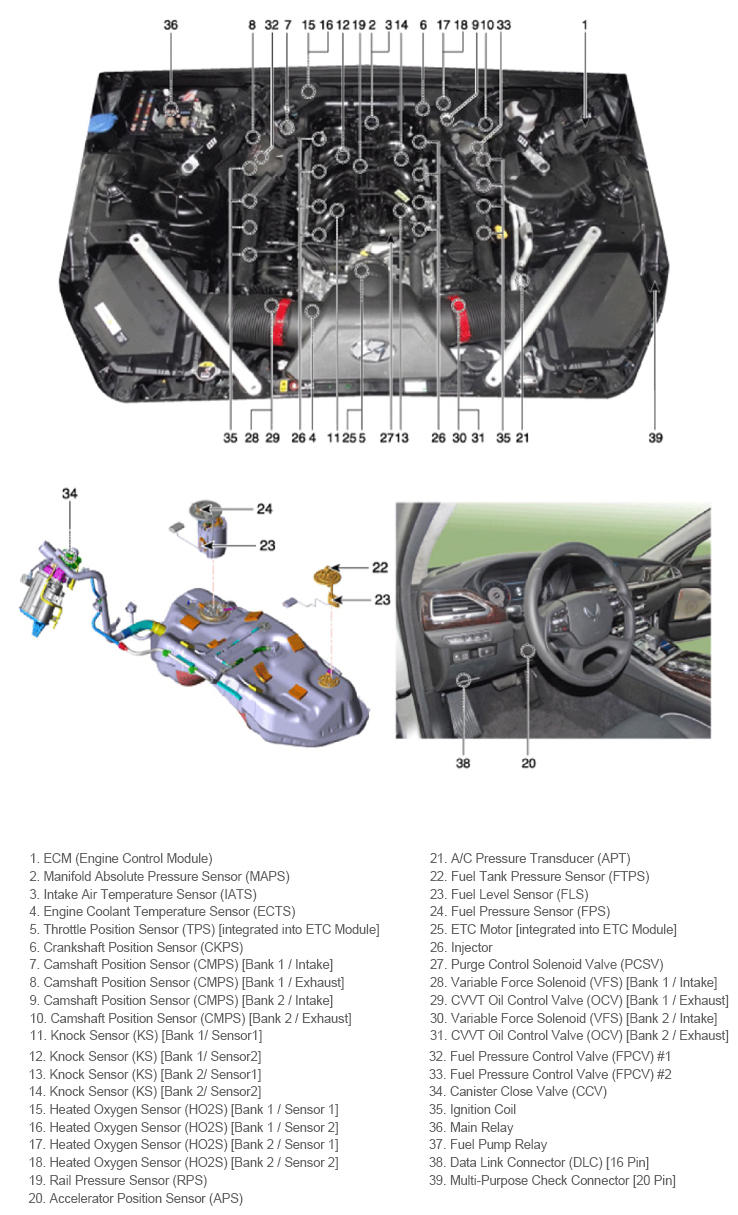

G13551295Courtesy of HYUNDAI MOTOR AMERICA

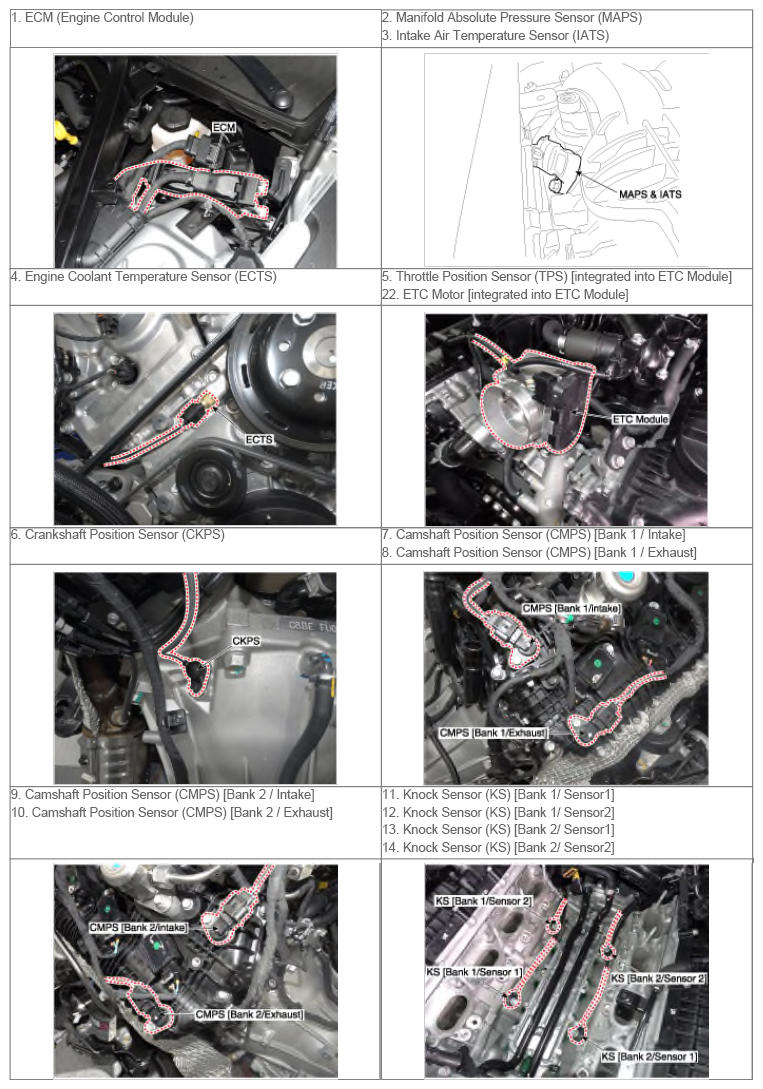

G13551296Courtesy of HYUNDAI MOTOR AMERICA

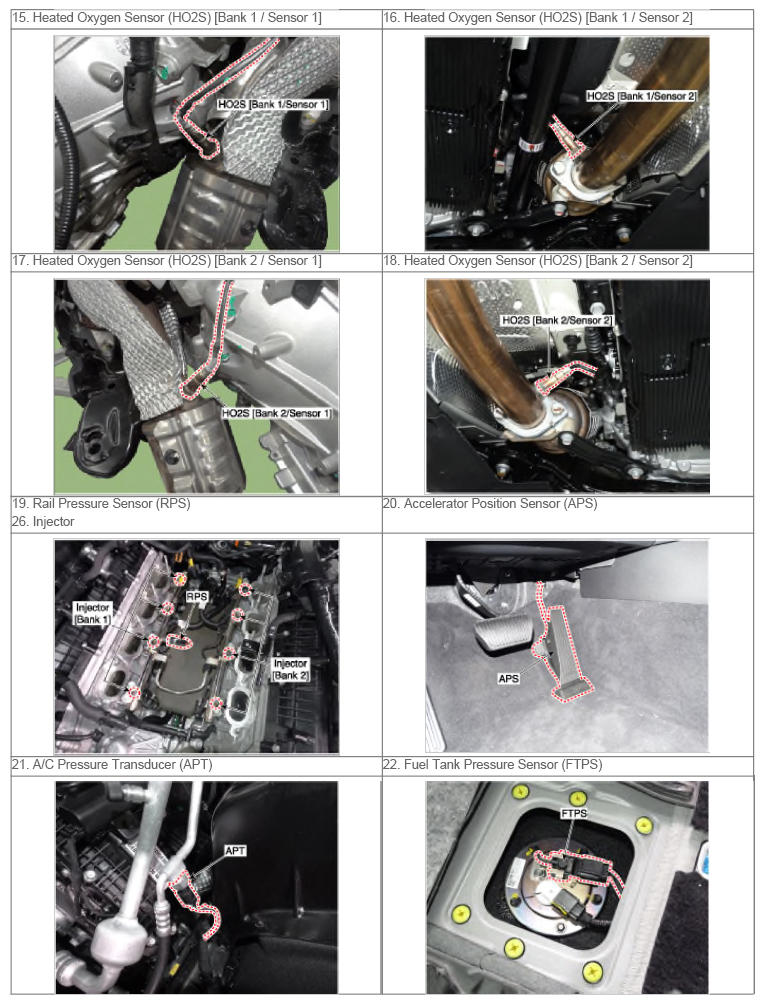

G13551297Courtesy of HYUNDAI MOTOR AMERICA

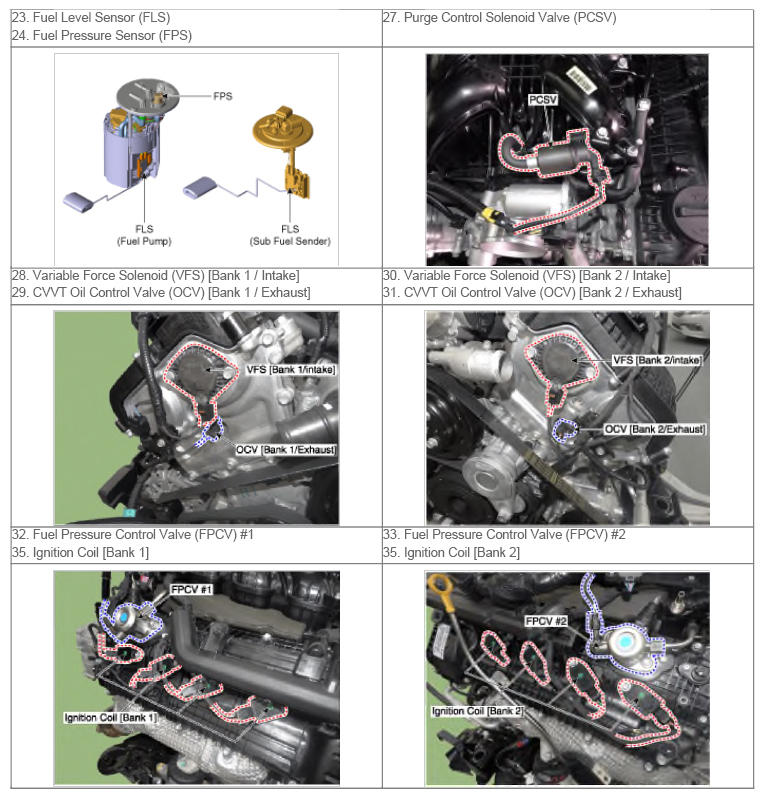

G13551298Courtesy of HYUNDAI MOTOR AMERICA

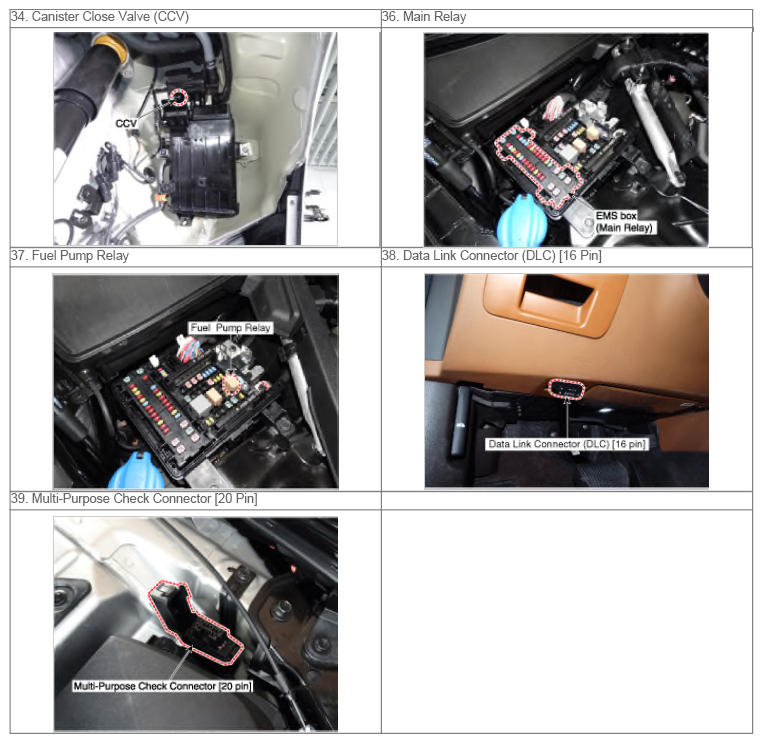

G13551299Courtesy of HYUNDAI MOTOR AMERICA
