Components And Components Location: Components

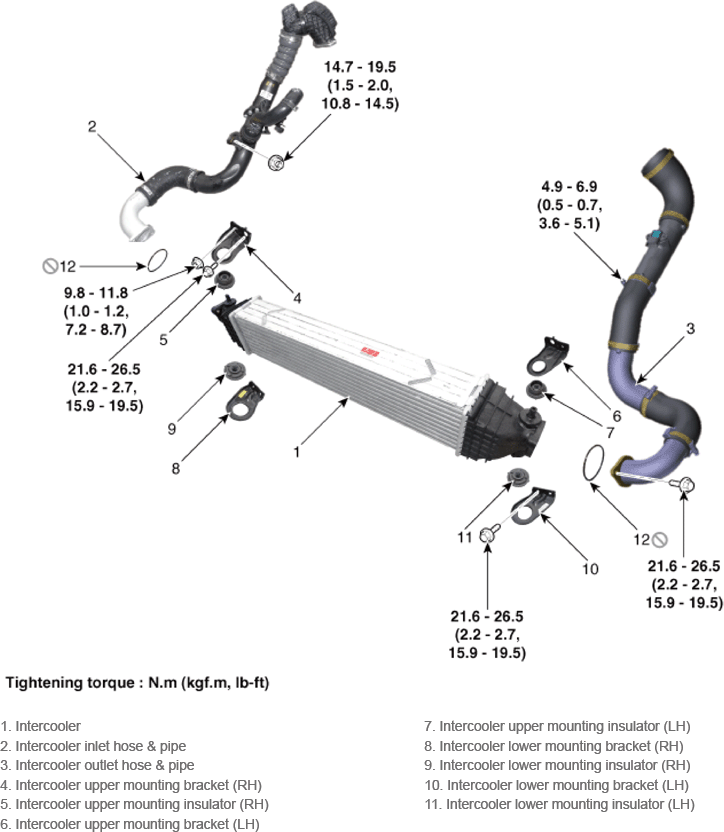

Fig 1: Intercooler Components Location With Torque Specifications
G14175258Courtesy of HYUNDAI MOTOR AMERICA
