Monitor GDS Data

  1. Connect Data Link Connector (DLC) to GDS.
  2. Check the "Current Data" about related DTC with GDS.

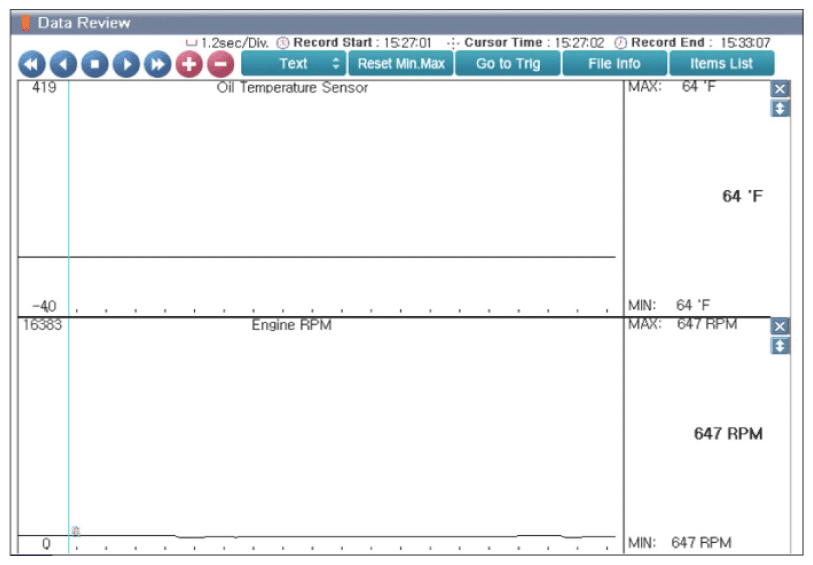

    G14180288Courtesy of HYUNDAI MOTOR AMERICA

    Fig.1) Engine Idle before Warm Up - transmission fluid temperature.

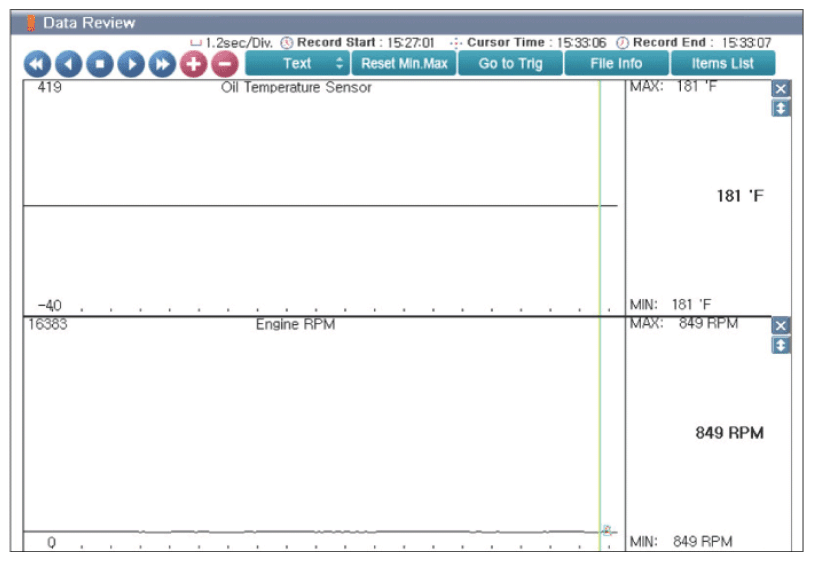

    G14180289Courtesy of HYUNDAI MOTOR AMERICA

    Fig.2) Engine Idle after Warm Up - transmission fluid temperature.

  3. Are the parameters displayed correctly?

    YES

    • Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
