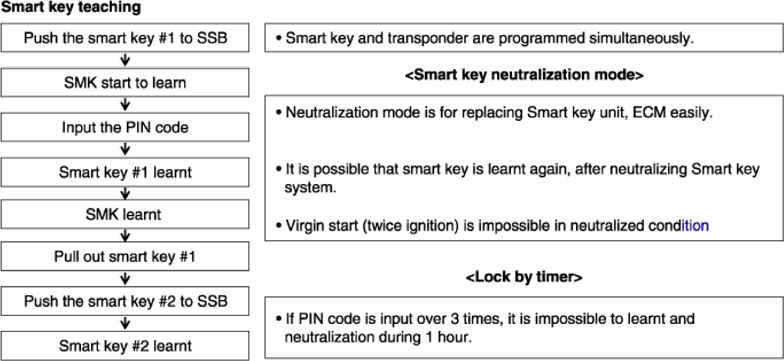

Teaching Mode Procedure Description (Step By Step)

Objective: Key teaching procedure at service station

Initial state:

• SMK replacement: SMK is not learnt and SMART FOB are already learnt with same PIN code
• Additional or new keys teaching: SMK are already learnt with same PIN code

  Courtesy of HYUNDAI MOTOR AMERICA
