Decision on the Operation Priority

  1. For automatic control, the motor operation shall be delayed by 100±10m sec. to prevent the overlapping of inrush circuit and in this case the priority shall be given as follows.

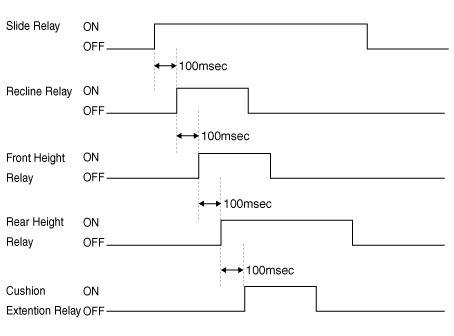

    Slide > Backrest adjustment > Front height adjustment >Rear height adjustment > Cushion extension adjustment Operation time chart

    G14177825Courtesy of HYUNDAI MOTOR AMERICA
