Component Inspection
- Turn "OFF" the ignition switch
- Connect probes to motor control terminals of VCM motor and signal terminal of VCM position sensor respectively.
- Start the engine.
- Monitor waveforms while step on and off the accelerator pedal by using VMI (Vehicle Measurement Interface).
Specification : Signal waveform will be displayed
- Is the waveform within the specification?
YES
- Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO

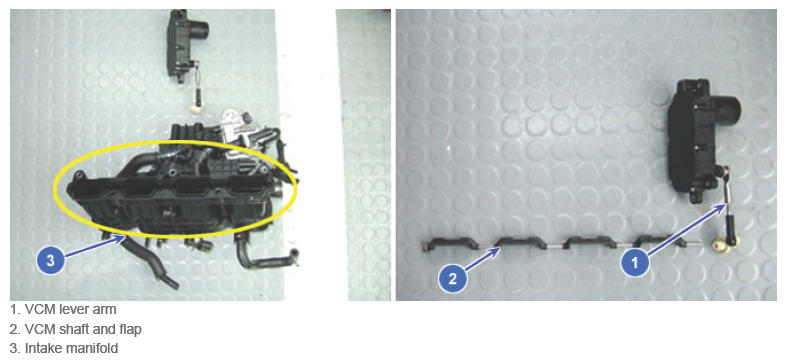

- Disassemble VCMA and Intake Manifold and check stuck by carbon or foreign object.
Check the component for contamination, deterioration, or damage.
- If there is no objects can be a cause of making flap stuck open, substitute with a known-good component and check for proper operation. If the problem is corrected, replace the component and then Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
