DTC B1603-00: CAN Bus Off
>>
Specification
>>
Signal Waveform & Data
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

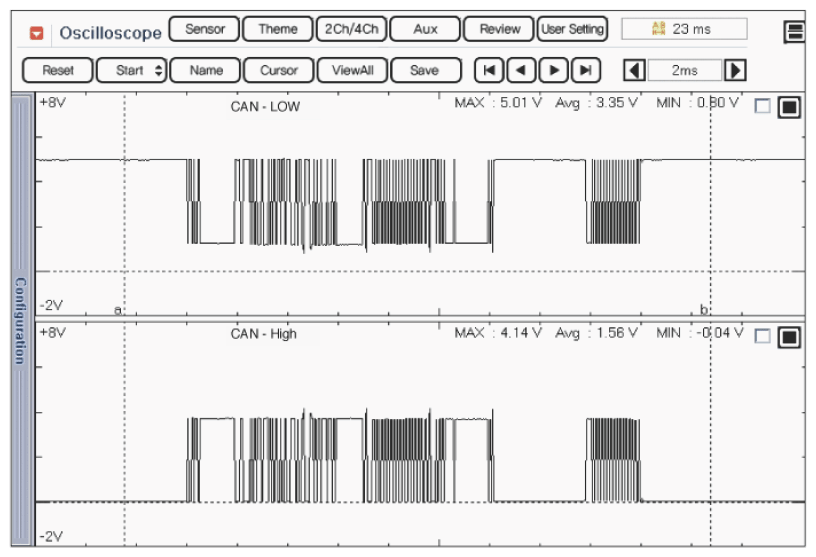

Signal Waveform & Data
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
