Components And Components Location: Components

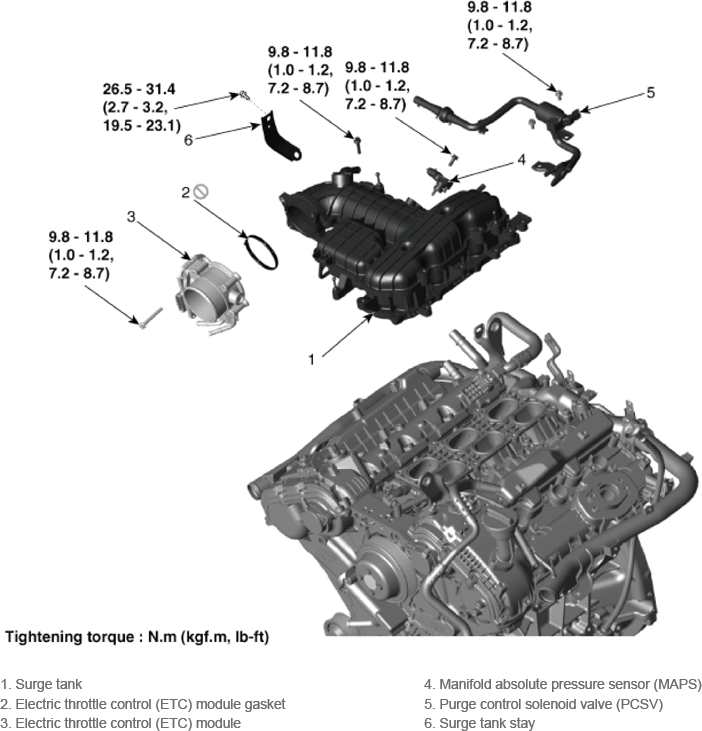

Fig 1: Surge Tank Components Location With Torque Specifications
G14178950Courtesy of HYUNDAI MOTOR AMERICA
