Components And Components Location: Components

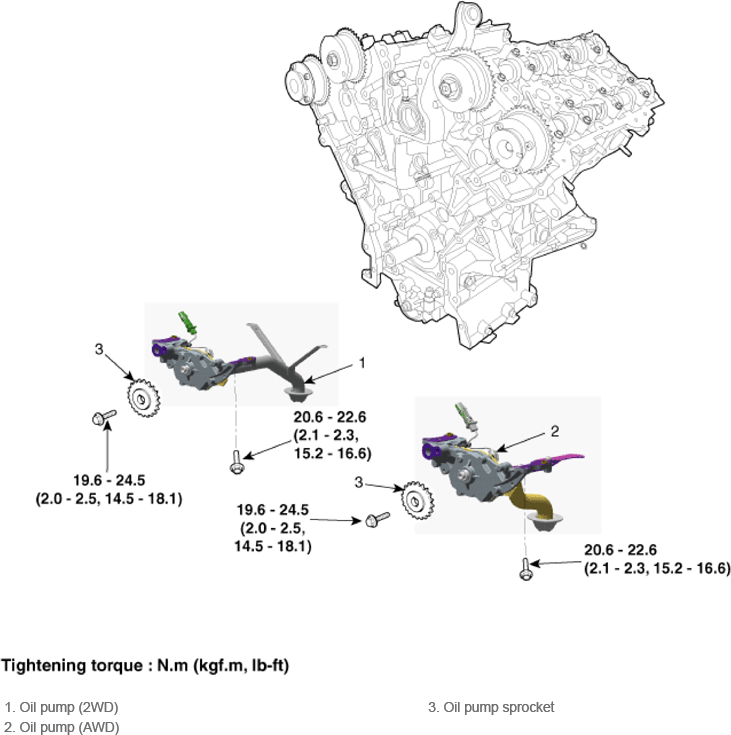

Fig 1: Oil Pump Components Location With Torque Specifications
G14178921Courtesy of HYUNDAI MOTOR AMERICA
