Components And Components Location: Components

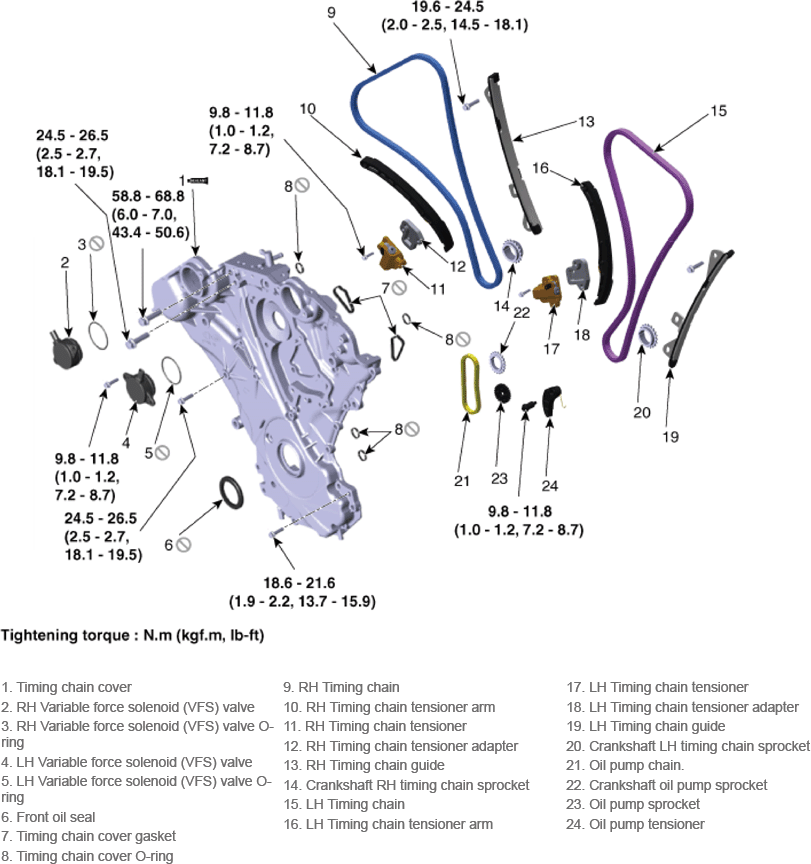

Fig 1: Timing System Components Location With Torque Specifications
G14178517Courtesy of HYUNDAI MOTOR AMERICA
