Repair Procedures: Installation

Install the parking switch (A) and parking release lever (B).

NOTE: Lightly tighten the bolts and nut so that necessary adjustments can be made.

Courtesy of HYUNDAI MOTOR AMERICA

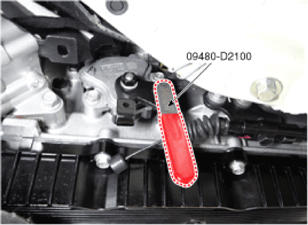

Align the hole in the parking release lever with the "P" position hole of the parking switch and then insert the SST parking switch guide pin (09480-D2100).

Courtesy of HYUNDAI MOTOR AMERICA

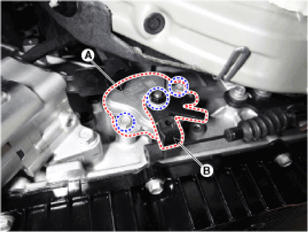

Tighten the parking switch mounting bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

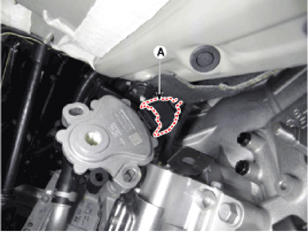

Tighten the parking release lever mounting nut (A).
Tightening torque:

13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb-ft)
Remove this SST (09480-D2100)

Courtesy of HYUNDAI MOTOR AMERICA

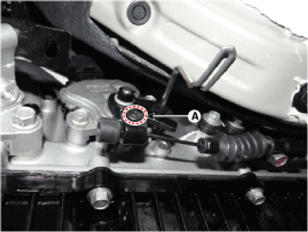

Tighten the fastener (A) after installing the parking cable from the parking release lever.
CAUTION:
- When install the parking release cable, replace the fastener with a new one.
Courtesy of HYUNDAI MOTOR AMERICA
