IAU-IBU Learning and IAU-BLE Module Learning Procedure

If you replace any of IAU unit, IBU unit and BLE module, "IAU-IBU Learning" and "IAU-BLE Module Learning" should be processed.

NOTE:

You should process "IAU-IBU Learning" and "IAU-BLE Module Learning" in order.

CAUTION:

You should notify the following items to the customer after completing the vehicle repair.
- If IAU-IBU learning or IAU-BLE module learning is processed, the existing smartphone key and NFC key card are deleted. (In this case, smart key information is not deleted so only smart key can turn on the vehicle.)
- You should notify that the smart phone key and NFC key card should be re-registered necessarily.
- To re-register the smart phone key, the digital key initialization of the vehicle owner's smart phone should be processed.
  After initializing the smart phone key, you should re-register the smart phone key.
- NFC key card should be re-registered and the existing NFC can be re-registered immediately. (New NFC key card can be registered and used.)

Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

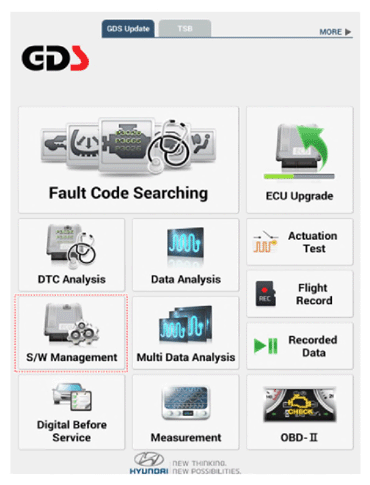

Select the "S/W Management".

Courtesy of HYUNDAI MOTOR AMERICA

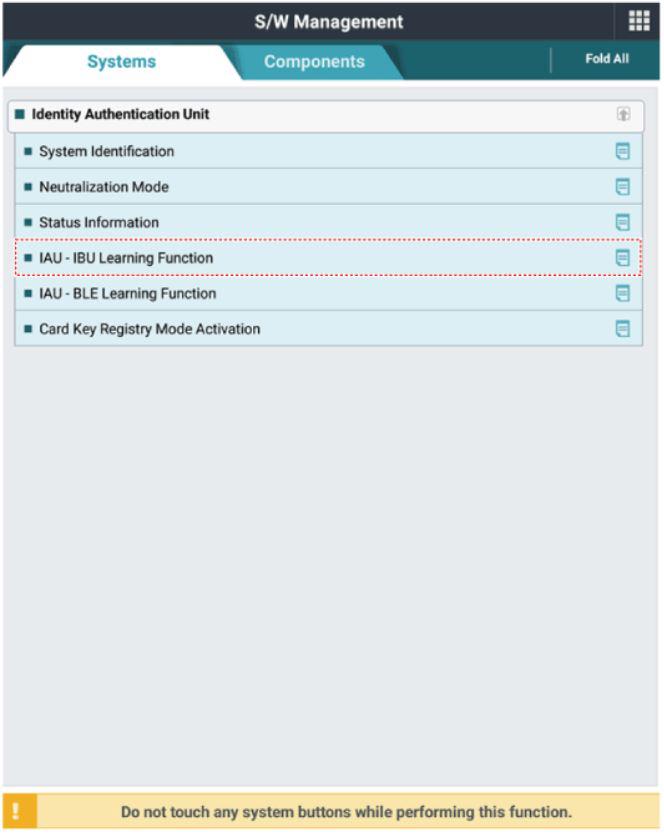

Select the "IAU-IBU Learning Function".

Courtesy of HYUNDAI MOTOR AMERICA

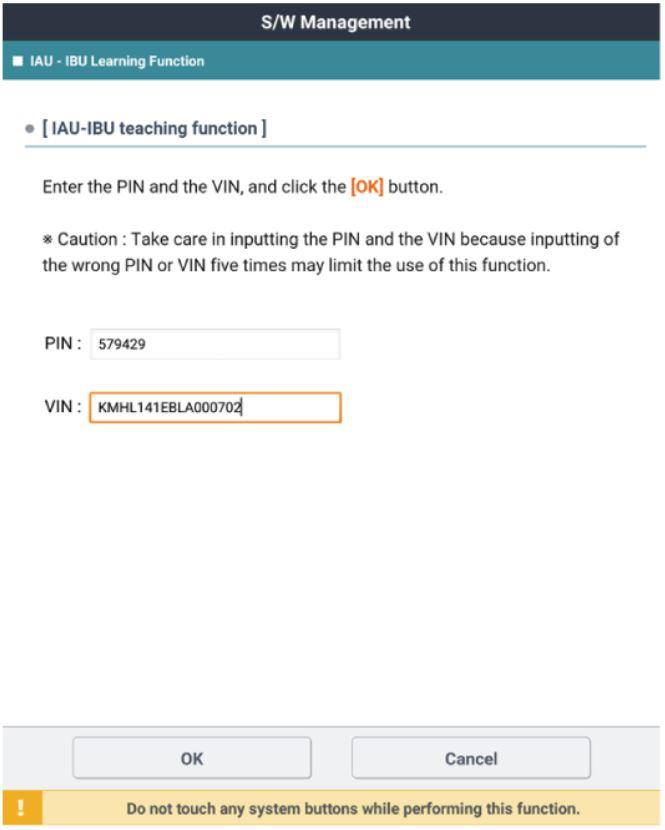

Enter the PIN code and VIN.

Courtesy of HYUNDAI MOTOR AMERICA
"IAU-IBU Learning" is completed.
Select the "IAU-BLE learning status".

Courtesy of HYUNDAI MOTOR AMERICA

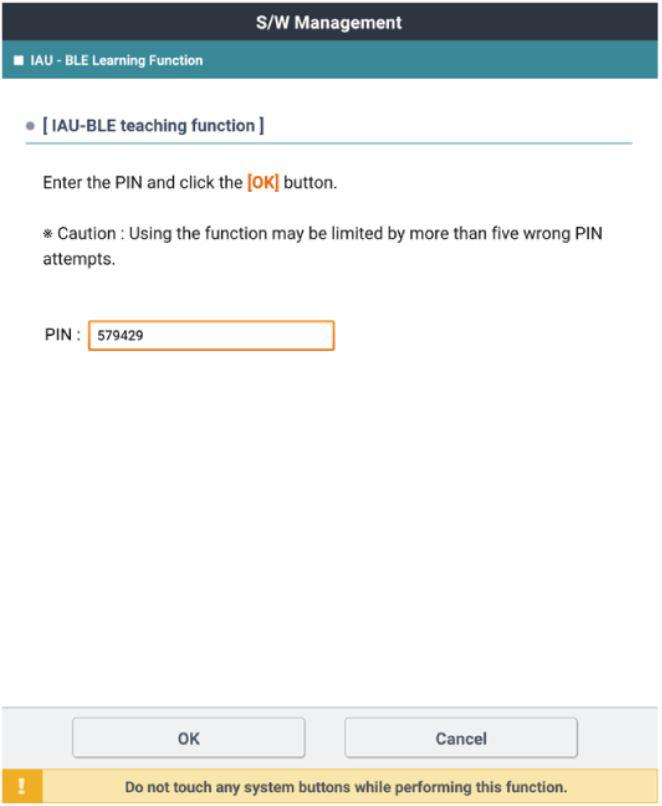

Enter the PIN code.

Courtesy of HYUNDAI MOTOR AMERICA
"IAU-BLE Learning" is completed.
