Driver Door Module: Function
DDM* controls the out-side mirror and is connected to ICU* to form B-CAN network of the vehicle.
Outside Mirror Unit* is embedded in the outside mirror and receives signals from DDM* connected to LIN* communication line to control the folding/unfolding operation of outside mirror.

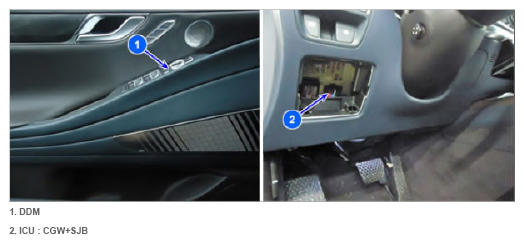

| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| DDM* | "DRIVER DOOR MODULE" | Driver Door Module | SD200-6 |
| ICU* CGW SJB |
→ "ICU JUNCTION BLOCK" → "ICU JUNCTION BLOCK_IPS CONTROL MODULE" → "ICU JUNCTION BLOCK" |
→ [CGW+SJB] Integrated Central control Unit → Central Gate Way → Smart Junction Block |
|
| LH Outside Mirror Unit* | "DRIVER POWER OUTSIDE MIRROR_SMART CONNECTOR" | Outside mirror controller | SD878-1 |
| RH Outside Mirror Unit* | "PASSENGER POWER OUTSIDE MIRROR_SMART CONNECTOR" | ||
| LIN* | Local Interconnect Network | ||
