G80 2.5T Advanced, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Driver Door Module Diagnosis
>>
DTC B169B-00: LIN Error LH Outside Mirror Unit
>>
Troubleshooting
>>
Diagnostic Flow-Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

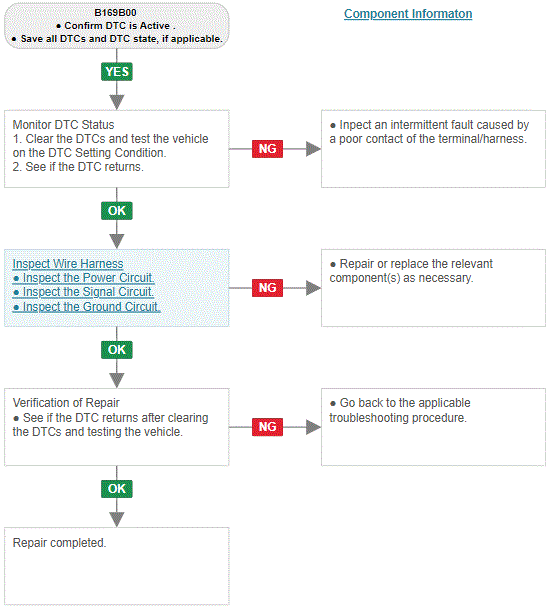

Diagnostic Flow-Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
