Genesis
>>
2021
>>
G80 2.5T Advanced, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Integrated Central Control Unit Diagnosis
>>
DTC B2801-00: MM CAN Signal Line Error
>>
Troubleshooting
>>

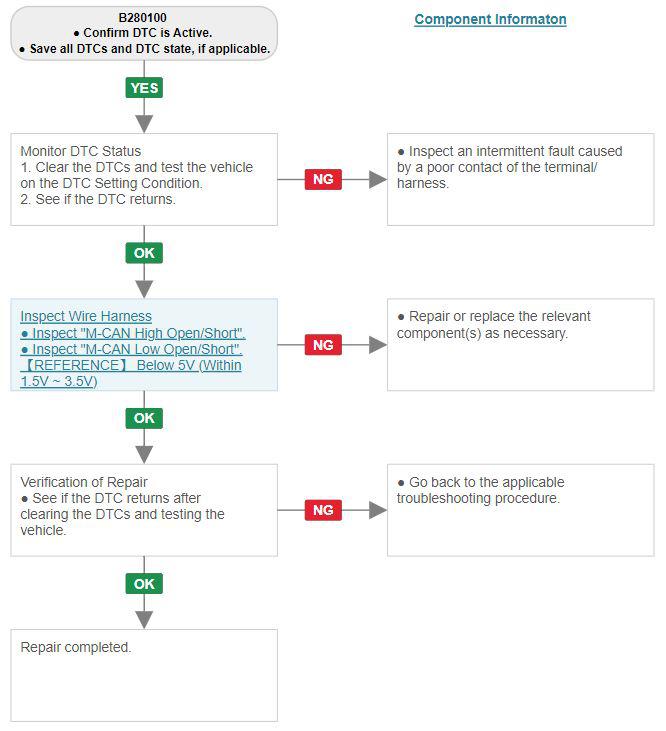

Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
