Steering Column Module: Function

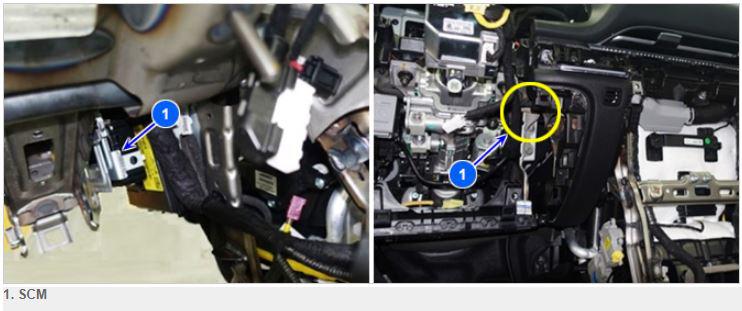

G15569328Courtesy of HYUNDAI MOTOR AMERICA

SCM* controls the height and the front and rear position adjustment of the steering wheel. SCM* is connected to ICU* to form B-CAN network of the vehicle.

Component Name_ETM Description ETM
SCM* "STEERING TILT & TELESCOPIC UNIT" Steering Column Module SD200-6
ICU*
CGW
SJB		 → "ICU JUNCTION BLOCK"
→ "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
→ "ICU JUNCTION BLOCK"		 → [CGW+SJB] Integrated Central control Unit
→ Central GateWay
→ Smart Junction Block
