Diagnostic Flowchart

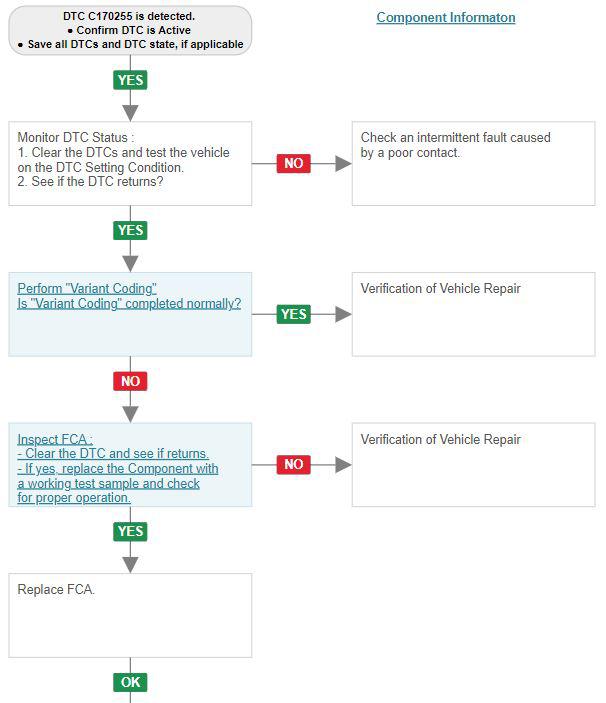

Fig 1: 1 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: 2 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: In a case of replacing FCA (AEB/SCC), perform "AEB Variant coding" and "Radar Sensor Alignment" in "Vehicle S/W Management" menu of the GDS.
