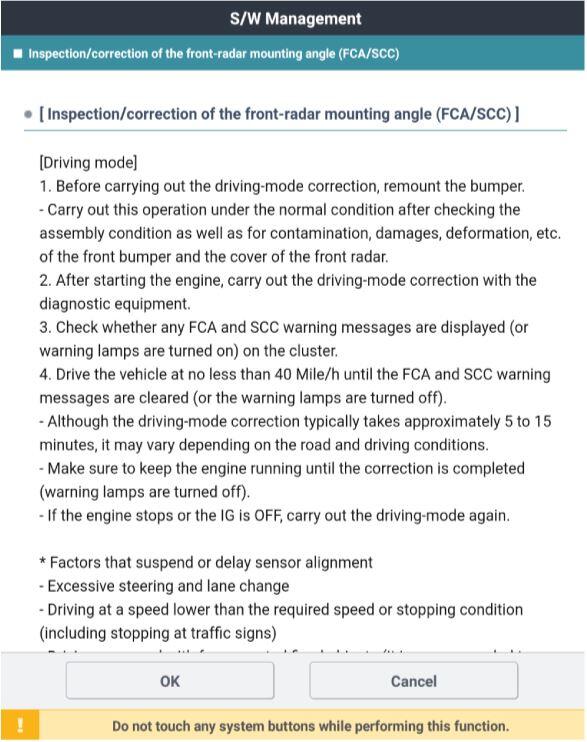

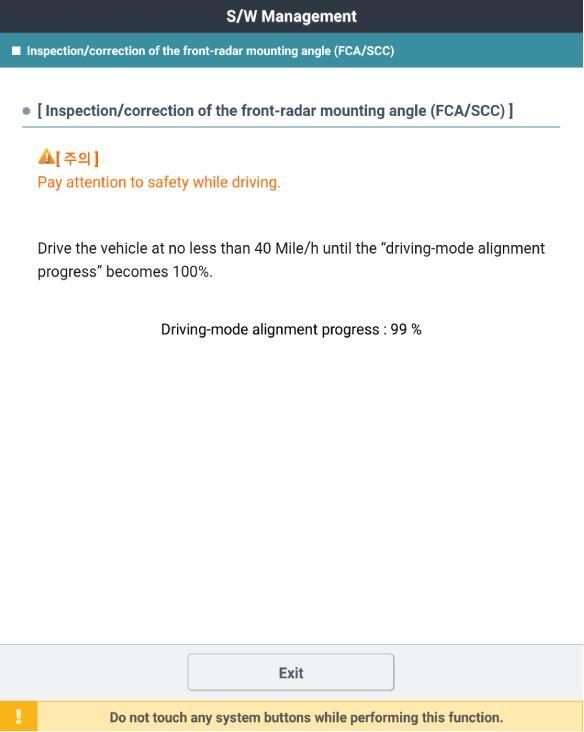

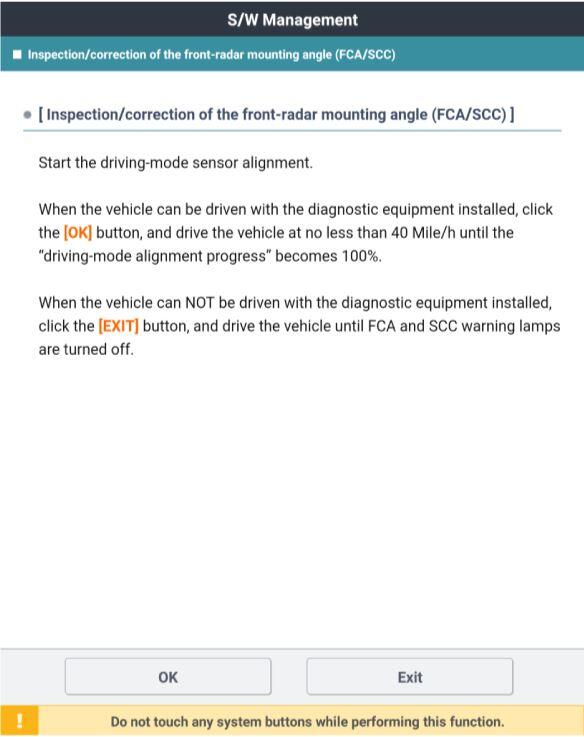

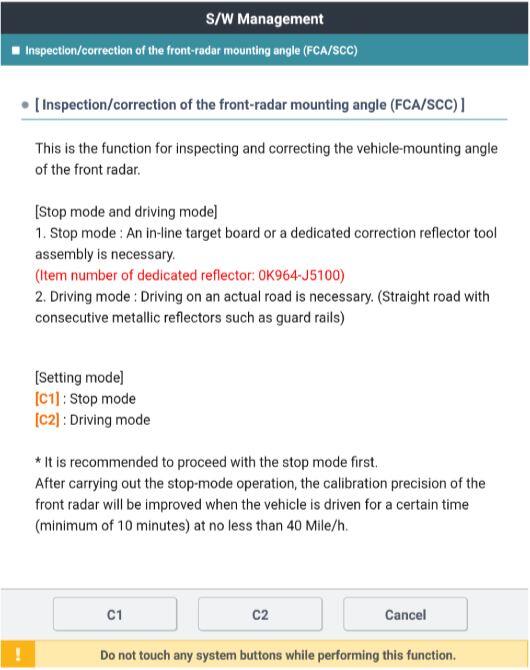

How to Check/Adjust Front Radar Installation Angle - Drive Mode
Information
- After operating stop mode, the accuracy will be increased if the vehicle has driven more than 10 min. (drive on straight lane which has metallic reflector.)
If stop mode operation can not be done, then use drive mode to proceed front radar adjusting procedure.
NOTE:
Preparation before the front radar alignment:
- Put the vehicle on the level ground.
- Take out heavy luggage from the vehicles' seats or trunk.
- Set all tires according to the specified pressure.
- Check wheel alignment.
- Check that the front surface of the front radar is clean.
