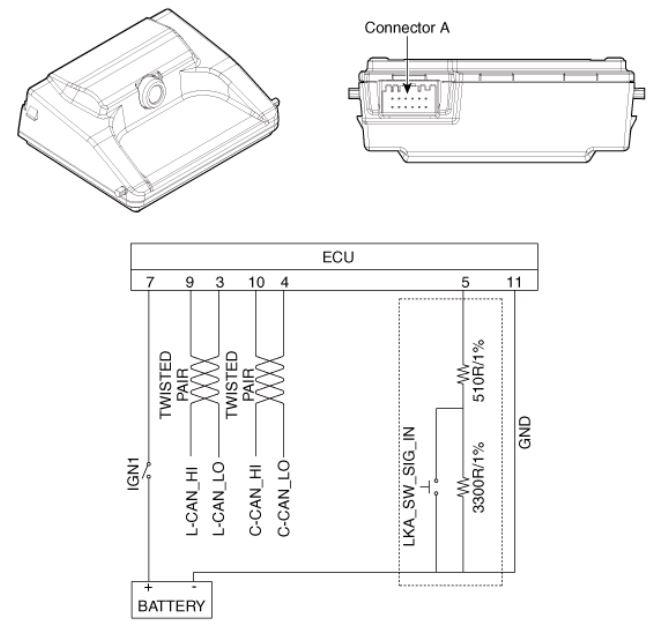

Circuit Diagram

G15555258Courtesy of HYUNDAI MOTOR AMERICA
Connector A   Description
G14932235Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 -
3 L-CAN (Low)
4 C-CAN (Low)
5 LKA switch signal
6 -
7 Ignition 1
8 -
9 L-CAN (High)
10 C-CAN (High)
11 Ground
12 -
