Assist Power Seat Unit: Function

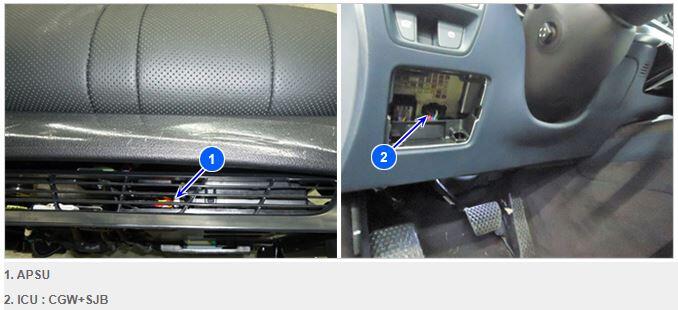

APSU* controls the position adjustment of Passenger Seat by manual seat switch operation. And it is connected to ICU* to form B-CAN network of the vehicle.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| APSU* | "PASSENGER POWER SEAT MODULE" | Assist Power Seat Unit | SD200-6 |
| ICU* CGW SJB |
→ "ICU JUNCTION BLOCK" → "ICU JUNCTION BLOCK_IPS CONTROL MODULE" → "ICU JUNCTION BLOCK" |
→ [CGW+SJB] Integrated Central control Unit → Central Gate Way → Smart Junction Block |
